UL1007 is a polyvinyl chloride insulated hook-up wire with a maximum voltage rating of 300 volts. This UL-approved appliance wiring material wire has tinned copper conductors for improved moisture, oxidation, and corrosion resistance. The wire's PVC insulation resists abrasion, moisture, ozone, acids, solvents, and fungus. It has good flame resistance. Applications include the internal wiring in electrical and electronic control panels as well as generators, turbines, and transformers. UL 1007 wire is available in a range of ten colors. Some versions have dual UL ratings.

UL Style AWG Sizes Voltage Rating Temp Rating Thickness Material Remarks
UL 1007 30-16 300 80 degrees Celcius 1/64 PVC Internal wiring of appliances

19 items

  • 07-22-7T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 3.70
    • AWG Size: 22
    • Cond. Material: Tinned Copper
    View Details
  • 07-20-10T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 4.80
    • AWG Size: 20
    • Cond. Material: Tinned Copper
    View Details
  • 07-20-1T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 4.60
    • AWG Size: 20
    • Cond. Material: Tinned Copper
    View Details
  • 07-20-7T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 6.00
    • AWG Size: 20
    • Cond. Material: Tinned Copper
    View Details
  • 07-18-16T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 7.00
    • AWG Size: 18
    • Cond. Material: Tinned Copper
    View Details

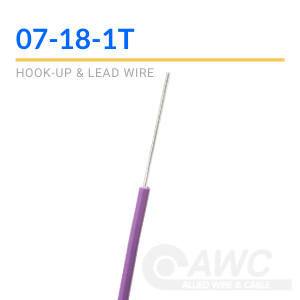

  • 07-18-1T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 6.70
    • AWG Size: 18
    • Cond. Material: Tinned Copper
    View Details

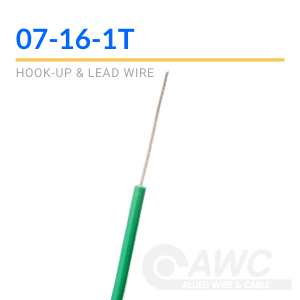

  • 07-16-1T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 10.00
    • AWG Size: 16
    • Cond. Material: Tinned Copper
    View Details
  • 07-16-26T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 10.50
    • AWG Size: 16
    • Cond. Material: Tinned Copper
    View Details

UL 1007 Wire Construction

Conductors

UL AWM 1007 wire uses solid or stranded tinned copper conductors. Tinned copper has superior corrosion resistance and does not oxidize at high temperatures. It is easy to solder, and crimped connections retain their conductivity. Available sizes are from 30 AWG to 10 AWG for stranded conductors and from 28 AWG to 16 AWG for solid conductors.

Insulation

Allied Wire and Cable's UL 1007 wire uses PVC insulation with a thickness of 16 mils (0.016 inches). UL 1007 PVC insulation has good resistance to oils, acids, and chemicals and retains its flexibility down to minus 40 degrees Celsius. UL 1007 wire insulation has a maximum temperature rating of 80 degrees Celsius.

UL 1007 Applications

UL 1007 hook-up wire is an appliance wiring material suitable for use in the internal wiring of equipment in terms of UL 758. The wire has good abrasion resistance. Typical applications for this wire include the internal wiring of electrical and electronic equipment including switchgear, transformers, generators, and turbines. UL 1007 wires with solid conductors and those with seven strands are semi-rigid and not suited for flexing applications.

Dual Ratings

Most UL 1007 wires have a dual UL 1569 AWM rating, with a maximum usable temperature of 105 C. While still rated for a maximum voltage of 300 volts, UL 1569 wires also comply with the Canadian Standards Association TR-64 requirements that allow a maximum temperature of 90 C. Some wires also carry a dual UL 1581 rating, which permits use immersed in oil up to a maximum temperature of 80 C.

UL 1007 Specifications

  • Conductors: Solid or stranded tinned copper
  • Insulation: PVC with a nominal thickness of 16 mils
  • Voltage rating: 300 volts
  • Sizes: 30 AWG to 10 AWG
  • Maximum temperature rating (UL 1007): 80°C
  • Maximum temperature rating (UL 1569): 105°C
  • Maximum temperature rating (CSA TR-64): 90°C
  • Minimum temperature rating: Minus 40°C
  • Cold bend test: Minus 40°C
  • Flame resistance: Passes VW-1 vertical flame test
  • Resistance: Resistant to acids, solvents, oil, water, and fungus
  • Abrasion resistance: Good

UL 1007 Hook-up Wire Certifications

UL Rating Voltage Temperature
UL 1007 300 volts 80°C
UL 1569 300 volts 105°C (some types)
UL 1581 300 volts 80°C in oil (some types)
CSA TR-64 300 volts 90°C (some types)
UL VW-1 Vertical Wire Flame Test
Restriction of Hazardous Substances (RoHS) Compliant
