UL 3196

UL 3196

UL 3196 wire is an electronic hook-up wire used in the internal wiring of switchboards and circuits. This wire is resistant to water, oil, acid, solvent, and fungus. It provides an economical alternative to Hypalon where extreme flexibility is not required. It can also use as internal wiring in appliances that are exposed to oil which does not exceed 125℃ in temperature.

2 items

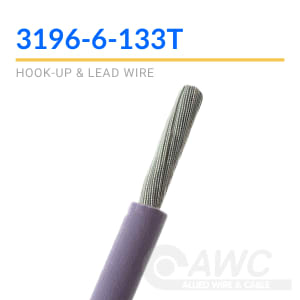

3196-6-133T
Approx LBS/MFT110.00
AWG Size6
Cond. MaterialTinned Copper
Conductor Stranding133/27
CSA TypeSIS/CL1251
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max. Temp125C
No. of Cond.1
Starting at 1.24 per FT

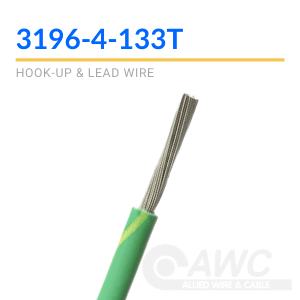

3196-4-133T
Approx LBS/MFT178.00
AWG Size4
Cond. MaterialTinned Copper
Conductor Stranding133/25
CSA TypeSIS/CL1251
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max. Temp125C
No. of Cond.1
Starting at 1.75 per FT

UL 3196 Wire Specifications

UL 3196 Wire Construction:

  • Conductor: Soft annealed stranded tinned copper, color-coded
  • Insulation: Cross-linked Polyethylene (XLPE)
  • Printing:
    • 14 AWG and Larger: printed with "SIS" for Switchboard applications
    • 16 AWG - 18 AWG: printed with "Suitable for Switchboard Use"

UL 3196 Wire Ratings and Approvals:

  • Temperature Rating: 125°C
  • Voltage Rating: 600 Volts
  • UL Recognized & CSA Certified
  • IEEE 130 motor lead, class B
  • Gasoline and oil resistant
  • RoHS Compliant
