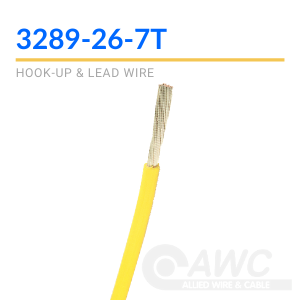

Approx LBS/MFT3.80
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM
Insul. MaterialIrradiated Cross-Linked Polyolefin (XLPO)
Max. Temp150C
No. of Strands7
UL 3289
UL 3289
UL 3289 hook-up wire has a temperature rating of 150°C and a voltage rating of 600V. UL 3289 wire irradiation cross-linked polymeric insulation possesses remarkable mechanical, flame resistance, and electrical properties. UL 3289 is also a halogen-free, flame-retardant UL/CSA approved stranded wire for the wiring of electrical panels, switchgear, electrical and electronic equipment. It is also suitable for use as a connection wire for motor and transformer windings, chokes, and relays that are subjected to impregnation and/or as a connecting wire in an environment that demands a high-temperature resistance.
28 items

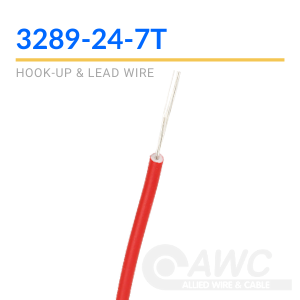

Approx LBS/MFT4.60
AWG Size24
Cond. MaterialTinned Copper
Conductor Stranding7/32
CSA TypeAWM/CL1502
Insul. MaterialIrradiated Cross-Linked Polyolefin (XLPO)
Max. Temp150C
No. of Strands7

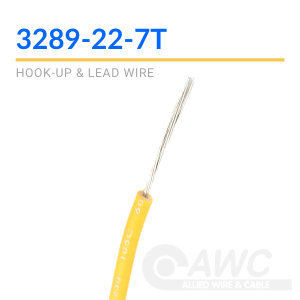

Approx LBS/MFT5.80
AWG Size22
Cond. MaterialTinned Copper
Conductor Stranding7/30
CSA TypeAWM/CL1502
Insul. MaterialIrradiated Cross-Linked Polyolefin (XLPO)
Max. Temp150C
No. of Strands7

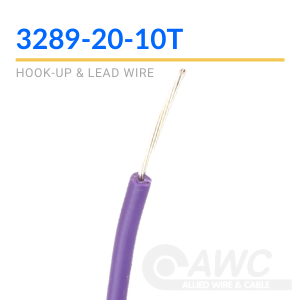

Approx LBS/MFT7.20
AWG Size20
Cond. MaterialTinned Copper
Conductor Stranding10/30
CSA TypeAWM/CL1502
Insul. MaterialIrradiated Cross-Linked Polyolefin (XLPO)
Max. Temp150C
No. of Strands10

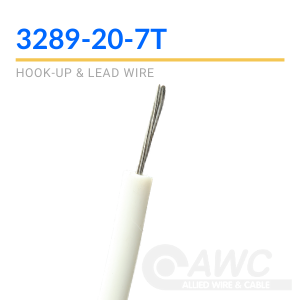

Approx LBS/MFT7.30
AWG Size20
Cond. MaterialTinned Copper
Conductor Stranding7/28
CSA TypeAWM/CL1502
Insul. MaterialIrradiated Cross-Linked Polyolefin (XLPO)
Max. Temp150C
No. of Strands7

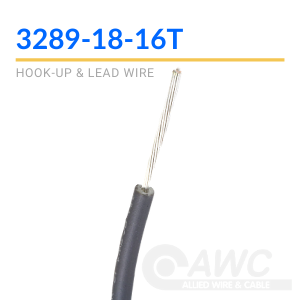

Approx LBS/MFT9.30
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding16/30
CSA TypeAWM/CL1502
Insul. MaterialIrradiated Cross-Linked Polyolefin (XLPO)
Max. Temp150C
No. of Strands16

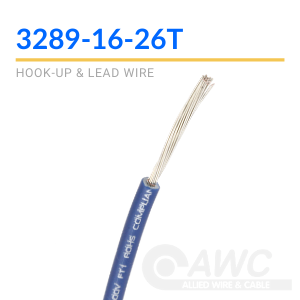

Approx LBS/MFT13.60
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding26/30
CSA TypeAWM/CL1502
Insul. MaterialIrradiated Cross-Linked Polyolefin (XLPO)
Max. Temp150C
No. of Strands26

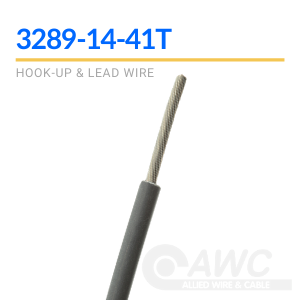

Approx LBS/MFT19.20
AWG Size14
Cond. MaterialTinned Copper
Conductor Stranding41/30
CSA TypeAWM/CL1502
Insul. MaterialIrradiated Cross-Linked Polyolefin (XLPO)
Max. Temp150C
No. of Strands41
UL 3289 Wire Specifications
UL 3289 Construction:
- Conductor: Soft annealed, solid or stranded, tinned copper conductor
- Insulation: Irradiated Cross-Linked Polyethylene Insulation (XLPE)
- Available Options: VW-1 Compound available. Perfused material available upon request for UL 3289 wire.
UL 3289 Ratings and Approvals:
- Max. Temperature: 150°C
- Voltage Rating: 600V
- CSA Certified
- RoHS Compliant
