M16878/14 - Type L

M16878/14 Type L (NEMA HP 5 Type L)

Our M16878/14 Type L hook-up wire is suitable for use in computers, appliances, business machines, and control panels. This wire is constructed with a stranded, tinned copper conductor and an irradiated, cross-linked polyolefin insulation. This wire has a maximum temperature of 125 C and a voltage rating of either 300 or 600 volts.

10 items

m16878/14bje
M16878/14BJE
Approx LBS/MFT9.3, 9.30
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding19/26
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.081
Max. Temp125C
Mil-SpecM16878/14, MIL-W-16878/14
Requires Quote per FT
m16878/14bke

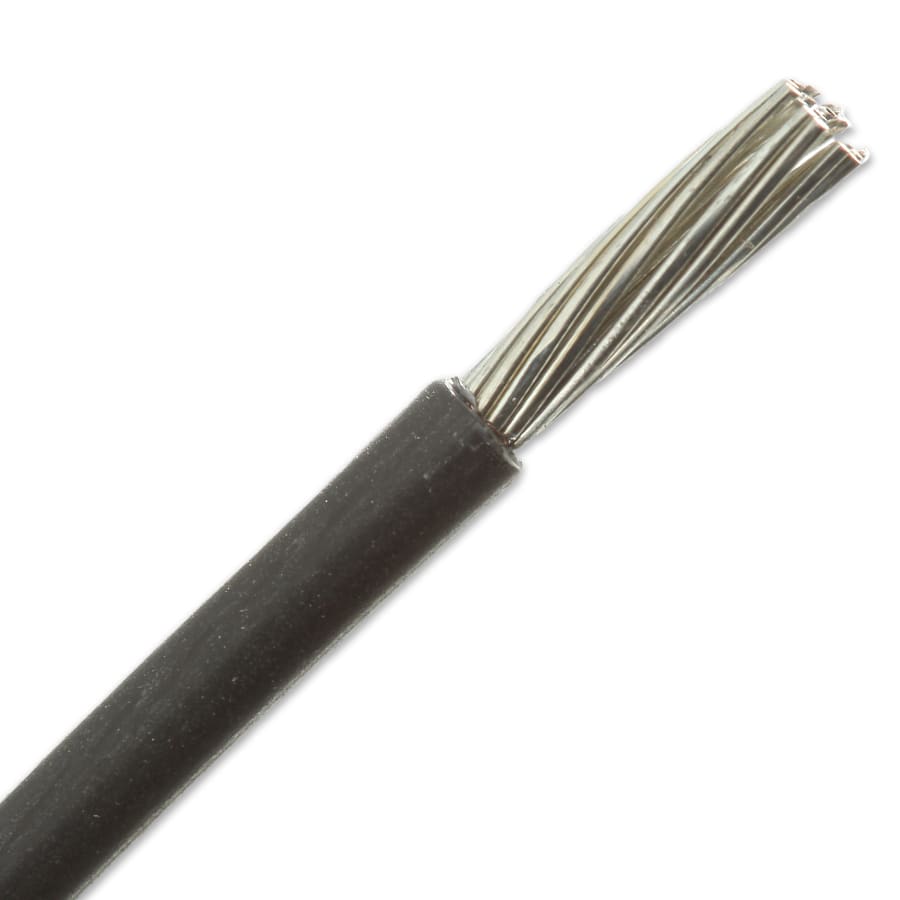

M16878/14BKE
Approx LBS/MFT14.1, 14.10
AWG Size14
Cond. MaterialTinned Copper
Conductor Stranding19/27
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.096
Max. Temp125C
Mil-SpecM16878/14, MIL-W-16878/14
Requires Quote per FT

M16878/14 Mil-Spec Hook-Up Wire Specifications

M16878/14 Construction:

  • Conductor: Stranded Tinned Copper, Color Coded
  • Insulation: Irradiated Cross-Linked Polyolefin

M16878/14 Ratings and Approvals:

  • Temperature Range: 125°C
  • Voltage Rating:
    • UL: 300 volts
    • NEMA HP5 Type L / MIL-DTL-16878/14: 600 volts
  • Passes UL VW-1 Flame Test
