Approx LBS/MFT38.7, 38.70
AWG Size10
Cond. MaterialTinned Copper
Conductor Stranding37/26
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.189
Max. Temp125C
Mil-SpecM16878/16, MIL-W-16878/16
M16878/16 - Type LX
M16878/16 — Type LX (NEMA HP 5 Type LX)

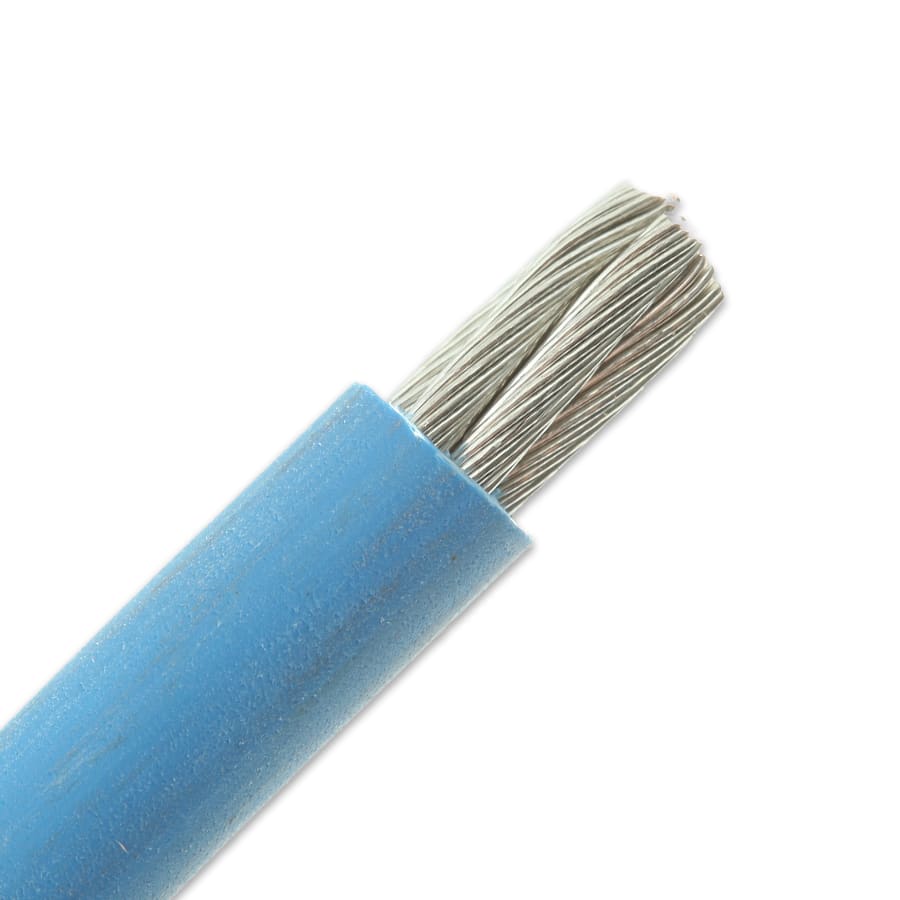

Our M16878/16 Type LX hook-up wire is an electronic hook-up wire with a small diameter. This wire is constructed of a soft annealed, tinned copper conductor and an extruded layer of irradiated, cross-linked polyethylene insulation. M16878/16 has a maximum temperature of 125 C and a voltage rating of 3000V.
18 items
Approx LBS/MFT70.1, 70.10
AWG Size8
Cond. MaterialTinned Copper
Conductor Stranding133/29
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.254
Max. Temp125C
Mil-SpecM16878/16, MIL-W-16878/16
Approx LBS/MFT107, 107.00
AWG Size6
Cond. MaterialTinned Copper
Conductor Stranding133/27
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.298
Max. Temp125C
Mil-SpecM16878/16, MIL-W-16878/16
Approx LBS/MFT166, 166.00
AWG Size4
Cond. MaterialTinned Copper
Conductor Stranding133/25
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.366
Max. Temp125C
Mil-SpecM16878/16, MIL-W-16878/16
Approx LBS/MFT256, 256.00
AWG Size2
Cond. MaterialTinned Copper
Conductor Stranding665/30
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.435
Max. Temp125C
Mil-SpecM16878/16, MIL-W-16878/16
Approx LBS/MFT314, 314.00
AWG Size1
Cond. MaterialTinned Copper
Conductor Stranding817/30
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.488
Max. Temp125C
Mil-SpecM16878/16, MIL-W-16878/16
Approx LBS/MFT399, 399.00
AWG Size1/0
Cond. MaterialTinned Copper
Conductor Stranding1045/30
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.538
Max. Temp125C
Mil-SpecM16878/16, MIL-W-16878/16
Approx LBS/MFT498, 498.00
AWG Size2/0
Cond. MaterialTinned Copper
Conductor Stranding1330/30
Insul. MaterialCross-Linked Polyethylene (XLPE)
Max O.D. (in)0.599
Max. Temp125C
Mil-SpecM16878/16, MIL-W-16878/16
