M24640/16 2XSW, 2XSWA, 2XSOW

M24640/16 2XSW, 2XSWA, 2XSOW Cable

The M24640/16 cable is a lightweight shipboard cable designed for electrical and communication purposes. This watertight, non-flexing cable comes in three variants: 2XSW (unarmored), 2XSWA (armored), and 2XSOW (shielded). This cable has a voltage rating of 600 volts.

11 items

2XSOW-12
Approx LBS/MFT100.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp135C
Mil-SpecM24640/16
Starting at 21.77 per FT
Lead Time: 42 days
2XSOW-19
Approx LBS/MFT884.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp135C
Mil-SpecM24640/16
Requires Quote per FT
In Stock
2XSOW-3
Approx LBS/MFT227.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp135C
Mil-SpecM24640/16
Requires Quote per FT
2XSOW-30
Approx LBS/MFT100.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp135C
Mil-SpecM24640/16
Requires Quote per FT
In Stock
2XSOW-7
Approx LBS/MFT390.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp135C
Mil-SpecM24640/16
Requires Quote per FT

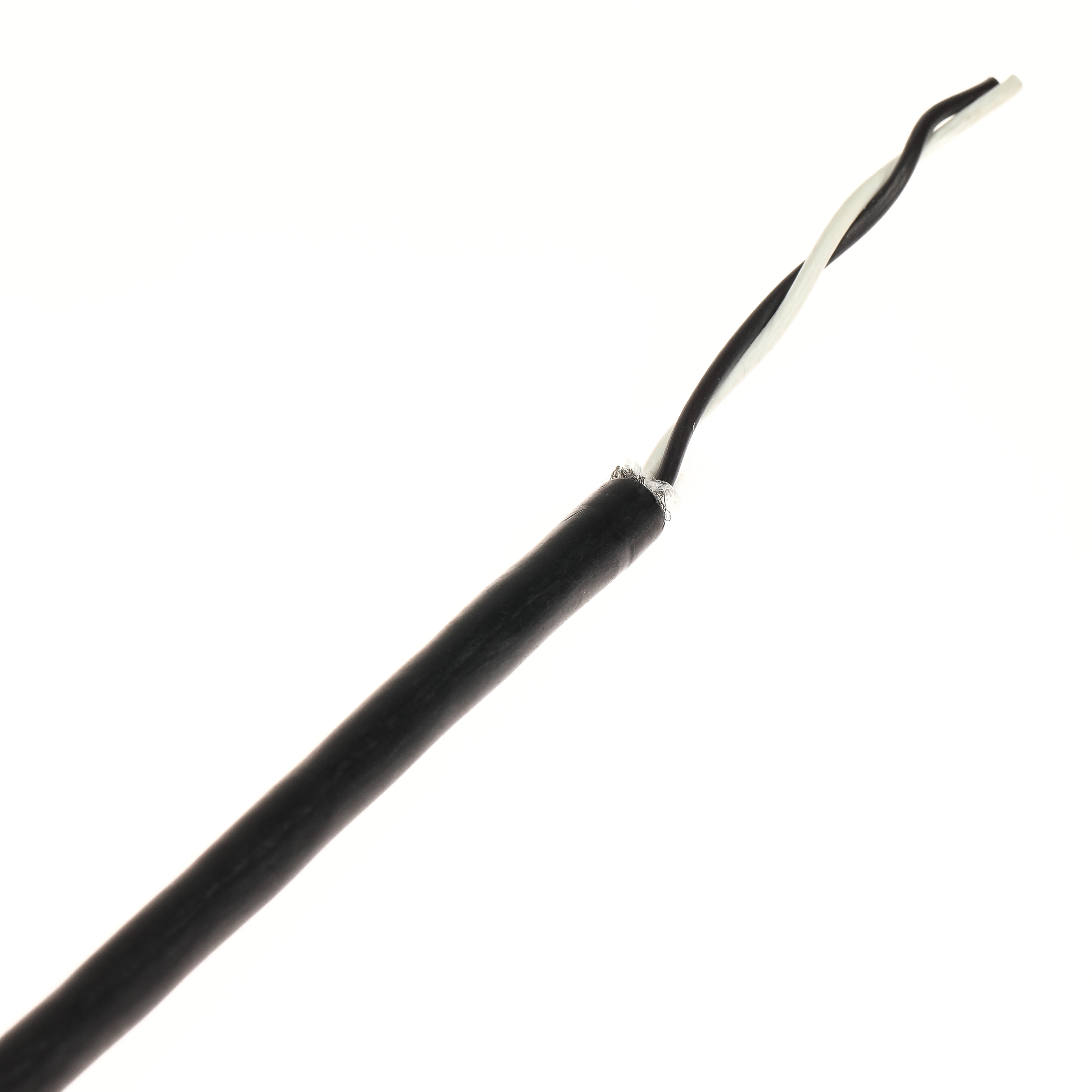

2XSW-1
Approx LBS/MFT52.9
AWG Size18
Color CodeTwo conductors, one black and one white, twisted together
Cond. MaterialTinned Copper
Conductor Stranding7
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp135C
Requires Quote per FT
2XSW-3
Approx LBS/MFT167.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp135C
Metal TubesB
Requires Quote per FT
2XSW-7
Approx LBS/MFT100.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp135C
Metal TubesC
Requires Quote per FT

M24640/16 Shipboard Cable Description:

  • Shielded pairs
  • Watertight cable
  • Non-flexing cable
  • Service: 600 Volts
