Ampacity (50C)10
Approx LBS/MFT52.00
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding19/29
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
M24640/2 TX, TXWB, TXA
M24640/2 TX, TXWB, TXA Cable

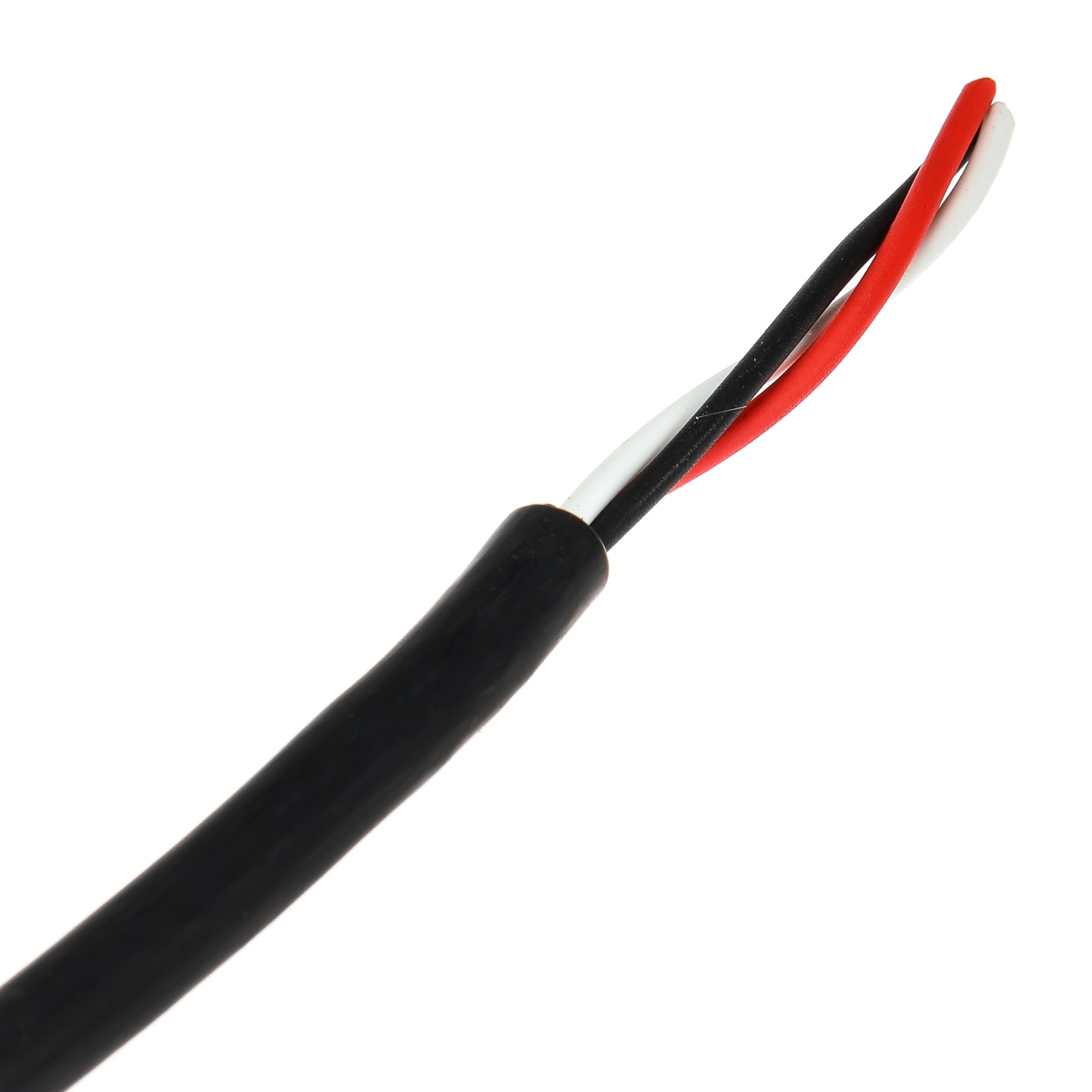

The M24640/2 cable is low-smoke and a low-flexing shipboard cable. It comes in three different versions: TX (unarmored), TXWB (watertight and unarmored), and TXA (armored). This Mil-Spec shipboard cable has a temperature rating of 105°C and a voltage rating of 600V.
6 items
Ampacity (50C)10
Approx LBS/MFT0.00
Armor MaterialAluminum
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding19/29
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Approx LBS/MFT60.20
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding7/.0192
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialCross-Linked Polyolefin (XLPO)
Jacket Thickness0.034
Max. Temp105C
Ampacity (50C)17
Approx LBS/MFT76.00
AWG Size14
Cond. MaterialTinned Copper
Conductor Stranding19/27
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Ampacity (50C)17
Approx LBS/MFT0.00
Armor MaterialAluminum
AWG Size14
Cond. MaterialTinned Copper
Conductor Stranding19/27
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialCross-Linked Polyolefin (XLPO)
Approx LBS/MFT84.00
AWG Size14
Cond. MaterialTinned Copper
Conductor Stranding7/.0242
Insul. MaterialCross-Linked Polyalkene
Jacket MaterialCross-Linked Polyolefin (XLPO)
Jacket Thickness0.038
Max. Temp105 C
M24640/2 TX, TXWB, TXA Shipboard Cable Specifications
M24640/2 Construction:
- Conductor: 3 Tinned Copper Conductors
- Insulation: Cross-linked Polyalkylene-linked Polyolefin
- Armor: TXA Cable only - Aluminum
M24640/2 Ratings:
- Mil-Spec: M24640/2
- Temperature Rating: 105°C
- Voltage Rating: 600 volts
