M24640/20 TXW, TXWA, TXOW

M24640/20 TXW, TXWA, TXOW Cable

The M24640/20 cable is a lightweight Mil-Spec cable designed for shipboard purposes. It is a watertight and non-flexing cable that comes in three different variations: TXWA (armored), TXW (unarmored), and TXOW (shielded). The M24640/20 has a temperature rating of 150C and a voltage rating of 600V.

6 items

TXOW-3
Ampacity (50C)10
Approx LBS/MFT100.00
AWG Size16
Conductor Stranding19/29
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Metal TubesA
Requires Quote per FT
TXW-3
Ampacity (50C)10
Approx LBS/MFT57.00
AWG Size16
Cond. MaterialBare Copper
Conductor Stranding19/29
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Requires Quote per FT
TXWA-3
Ampacity (50C)10
Approx LBS/MFT0.00
Armor MaterialAluminum
AWG Size16
Conductor Stranding19/29
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Requires Quote

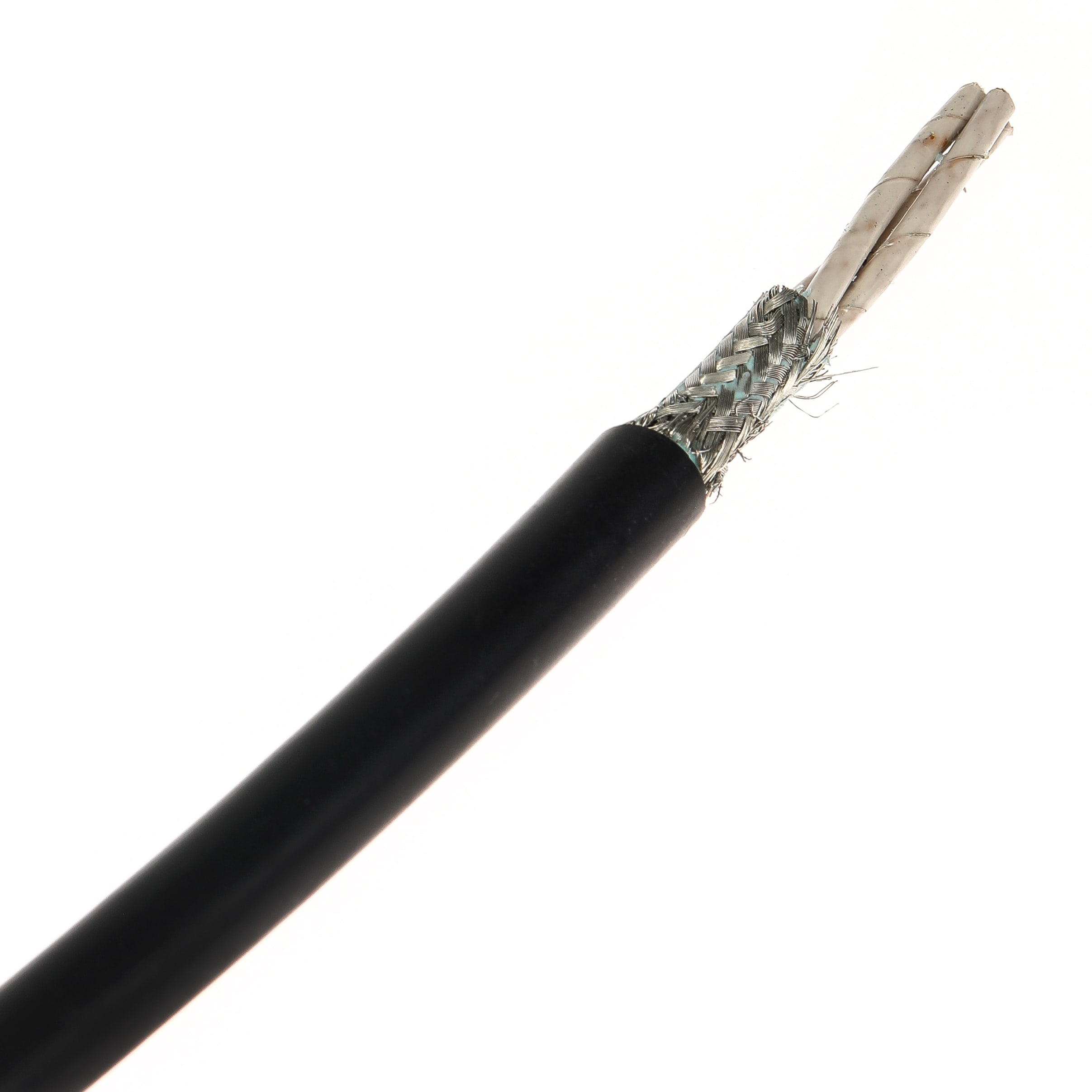

TXOW-4
Ampacity (50C)17
Approx LBS/MFT130.00
AWG Size14
Conductor Stranding19/27
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Metal TubesA
Requires Quote per FT
TXW-4
Ampacity (50C)17
Approx LBS/MFT87.00
AWG Size14
Conductor Stranding19/27
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Metal TubesA
Requires Quote per FT
TXWA-4
Ampacity (50C)17
Approx LBS/MFT0.00
Armor MaterialAluminum
AWG Size14
Conductor Stranding19/27
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Requires Quote per FT

M24640/20 TXWA, TXOW, TXW Shipboard Cable Specifications

M24640/20 Construction:

  • Conductor: Three conductors, Bare Copper
  • Insulation: Mica/Polyamide Tape
  • Jacket: LSZH Cross-Linked Polyolefin (XLPO)
  • Wrap: Mica/Polyamide Tape
  • Armor: TXWA only: Aluminum
  • Shield: TXWA and TXOW only: Overall Tinned Copper Braid

M24640/20 Ratings and Approvals:

  • Voltage Rating: 600 volts
  • Temperature Rating: 150°C
  • Navy Specs:
    • TXW - Unarmored
    • TXWA - Armored
    • TXOW - Shielded
  • Mil-Spec: M24640/26
