M24640/22 7XW, 7XWA

M24640/22 7XW, 7XWA Cable

The M24640/22 cable is a lightweight, circuit integrity cable designed for shipboard purposes. It is a watertight and non-flexing cable that comes in two variations: 7XWA (armored) and 7XW (unarmored). The M24640/22 cable has a temperature rating of 150°C and a voltage rating of 600V.

4 items

7XW-3
Ampacity (50C)14/10
Approx LBS/MFT0.00
AWG Size16
Cond. MaterialBare Copper
Conductor Stranding19/29
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Requires Quote per FT
7XWA-3
Ampacity (50C)14/10
Approx LBS/MFT0.00
Armor MaterialAluminum
AWG Size16
Cond. MaterialBare Copper
Conductor Stranding19/29
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Requires Quote per FT

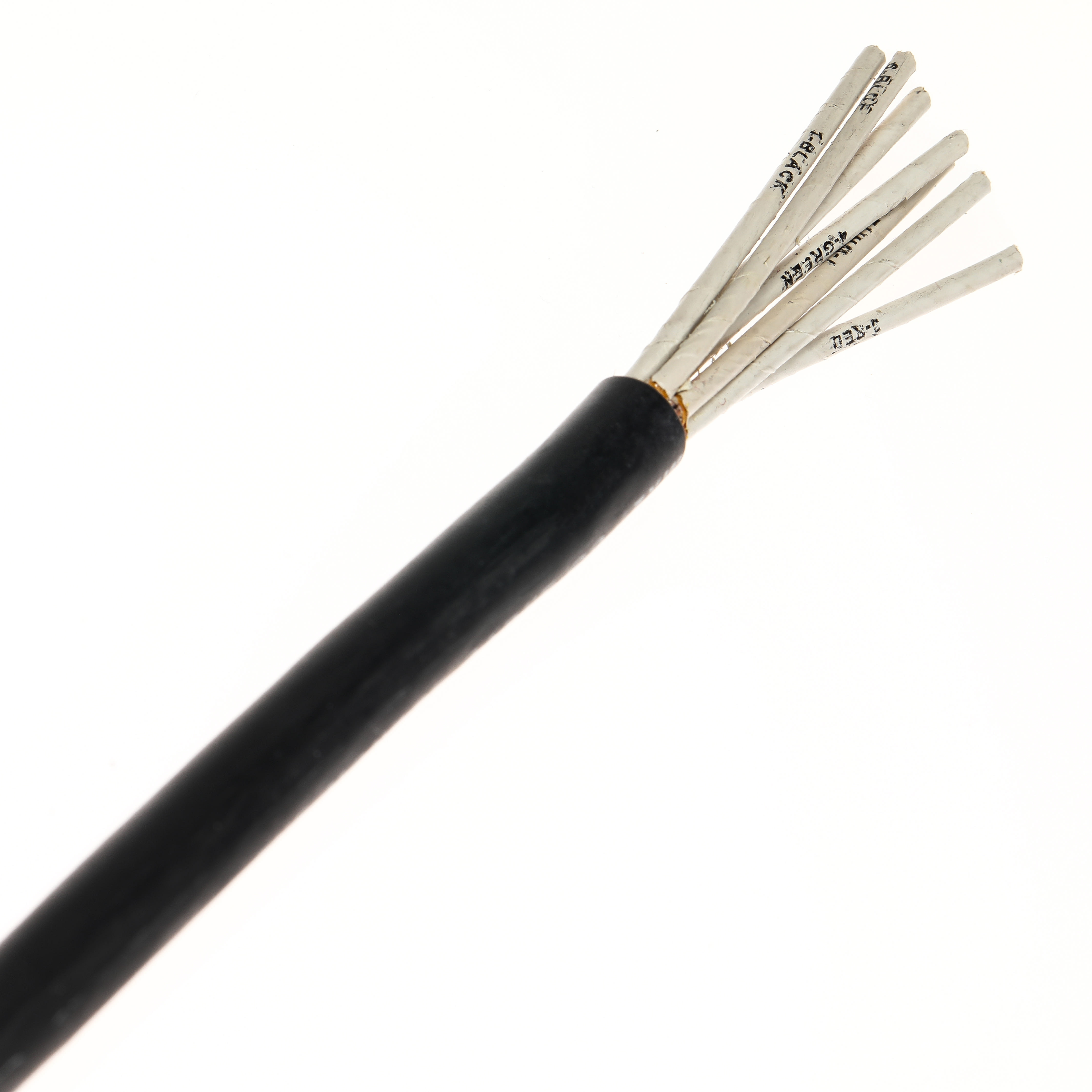

7WX-4
Ampacity (50C)24/13
Approx LBS/MFT0.00
AWG Size14
Cond. MaterialBare Copper
Conductor Stranding19/27
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max. Temp150C
Requires Quote per FT
7XWA-4
Ampacity (50C)24/13
Approx LBS/MFT0.00
Armor MaterialAluminum
AWG Size14
Cond. MaterialBare Copper
Conductor Stranding19/27
Insul. MaterialMica/Polyimide Tape
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Requires Quote per FT

M24640/22 7XW, 7XWA Shipboard Cable Specifications

M24640/22 Construction:

  • Conductor: 7 Bare Copper Conductors
  • Insulation: Mica/Polyamide Tape
  • Jacket: LSZH Cross-linked Polyolefin
  • Wrap: Mica/Polyamide Tape
  • Armor: 7XWA only - Aluminum

M24640/22 Ratings and Approvals:

  • Mil Spec: MIL-C-24640/22
  • Navy Specs:
    • 7XW - Unarmored
    • 7XWA - Armored
  • Temperature Rating: 150°C
  • Voltage Rating: 600 Volts
