Approx LBS/MFT0
AWG Size8
Cond. MaterialTinned Copper
Conductor Stranding133/29
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTE
Max O.D. (in)0.202
Max. Temp150C
M22759/16
M22759/16 Wire

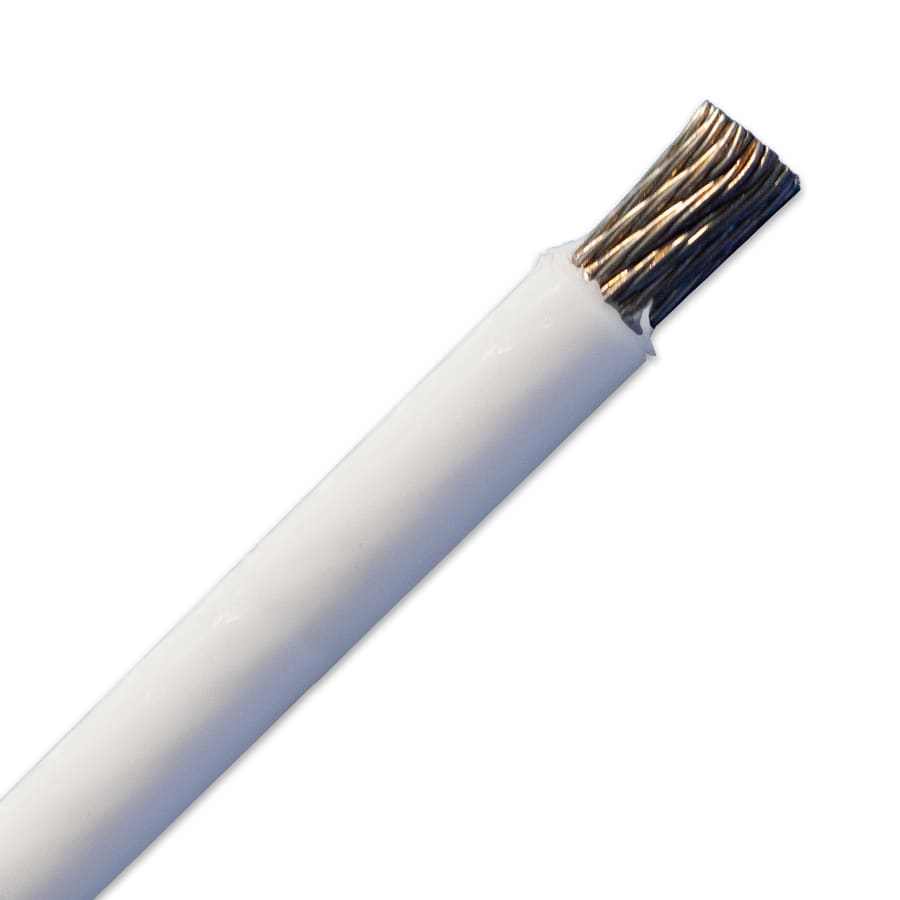

Our M22759/16 wire is a highly durable Mil-Spec wire designed to be used in aircraft applications. This wire is constructed of stranded tinned copper conductors and ETFE insulation. This wire has green or white print on the insulation for identification purposes. It also has a maximum temperature of +150°C and a voltage rating of 600V.
17 items
Approx LBS/MFT97
AWG Size6
Cond. MaterialTinned Copper
Conductor Stranding133/27
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTE
Max O.D. (in)0.253
Max. Temp150C
Approx LBS/MFT0
AWG Size4
Cond. MaterialTinned Copper
Conductor Stranding133/25
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTE
Max O.D. (in)0.316
Max. Temp150C
Approx LBS/MFT0
AWG Size2
Cond. MaterialTinned Copper
Conductor Stranding665/30
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTE
Max O.D. (in)0.392
Max. Temp150C
Approx LBS/MFT0
AWG Size1
Cond. MaterialTinned Copper
Conductor Stranding817/30
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTE
Max O.D. (in)0.436
Max. Temp150C
Approx LBS/MFT407
AWG Size1/0
Cond. MaterialTinned Copper
Conductor Stranding1045/30
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTE
Max O.D. (in)0.485
Max. Temp150C
Approx LBS/MFT528
AWG Size2/0
Cond. MaterialTinned Copper
Conductor Stranding1330/30
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTE
Max O.D. (in)0.553
Max. Temp150C
M22759/16 Mil-Spec Wire Specifications
M22759/16 Conductor:
- Conductor: Stranded Tinned Copper
- Insulation: Ethylene Tetrafluoroethylene (ETFE)
M22759/16 Ratings and Approvals:
- Voltage: 600 Volts
- Max. Temperature: 150°C (302°F)
- SAE: AS22759/16
