M22759/43

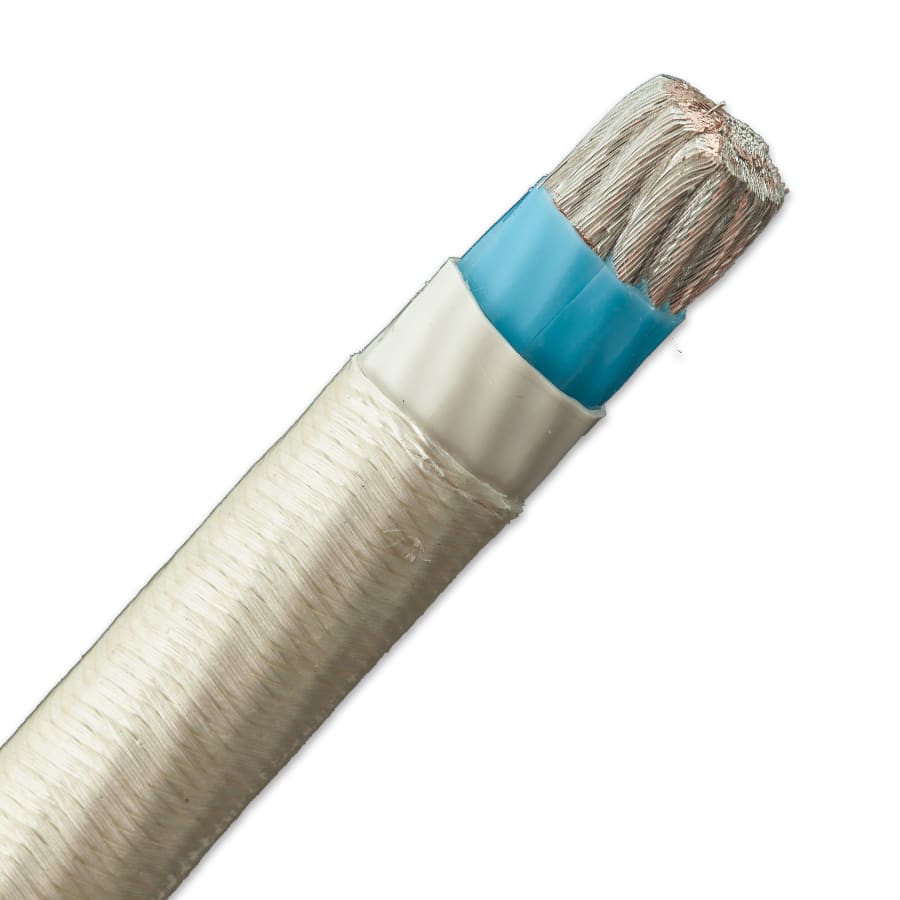

Our M22759/43 wire is a highly durable Mil-Spec wire designed to be used in aircraft and military applications where abrasion is a concern. This wire is constructed of silver-coated copper conductors, cross-linked ETFE insulation, a cross-linked ETFE jacket, and a treated aromatic polyamide braid shield. This wire also has a maximum temperature of +200°C and a voltage rating of 600V.

18 items

m22759/43-10
M22759/43-10
Approx LBS/MFT32.4, 32.40
AWG Size10
Cond. MaterialSilver-Coated Copper
Conductor Stranding37/26
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
M27500 ComponentSP
Max O.D. (in)0.138
Starting at 1.98 per FT
m22759/43-8
M22759/43-8
Approx LBS/MFT61.9, 61.90
AWG Size8
Cond. MaterialSilver-Coated Copper
Conductor Stranding133/29
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
M27500 ComponentSP
Max O.D. (in)0.203
Requires Quote per FT
m22759/43-6
M22759/43-6
Approx LBS/MFT94.5, 94.50
AWG Size6
Cond. MaterialSilver-Coated Copper
Conductor Stranding133/27
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
M27500 ComponentSP
Max O.D. (in)0.251
Starting at 4.63 per FT
m22759/43-4
M22759/43-4
Approx LBS/MFT0, 0.00
AWG Size4
Cond. MaterialSilver-Coated Copper
Conductor Stranding133/25
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
M27500 ComponentSP
Max O.D. (in)0.32, 0.320
Starting at 7.99 per FT
m22759/43-2
M22759/43-2
Approx LBS/MFT0, 0.00
AWG Size2
Cond. MaterialSilver-Coated Copper
Conductor Stranding665/30
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
M27500 ComponentSP
Max O.D. (in)0.428
Requires Quote per FT
m22759/43-1
M22759/43-1
Approx LBS/MFT0, 0.00
AWG Size1
Cond. MaterialSilver-Coated Copper
Conductor Stranding817/30
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
M27500 ComponentSP
Max O.D. (in)0.461
Requires Quote per FT
m22759/43-01
M22759/43-01
Approx LBS/MFT0, 0.00
AWG Size1/0
Cond. MaterialSilver-Coated Copper
Conductor Stranding1045/30
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
M27500 ComponentSP
Max O.D. (in)0.501
Requires Quote per FT
m22759/43-02
M22759/43-02
Approx LBS/MFT0, 0.00
AWG Size2/0
Cond. MaterialSilver-Coated Copper
Conductor Stranding1330/30
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Jacket MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
M27500 ComponentSP
Max O.D. (in)0.561
Requires Quote per FT
