M27500 SB-23

M27500 SB-23 Cable

The M27500 SB-23 cable is a strong, lightweight Mil-Spec cable designed for use in the aerospace industry, including airframe and avionic applications. This cable is constructed of tinned copper conductors, XL-ETFE insulation, and a white XL-ETFE jacket. It has a maximum temperature of 150°C and a voltage rating of 600V.

24 items

m27500-18sb2t23
M27500-18SB2T23
ApplicationAvionics, Aerospace, Airframe, Defense, Wide Range of General Purpose Electrical Applications
AWG Size18
Cond. MaterialTinned Copper
Insul. MaterialXLETFE
Jacket ColorWhite
Jacket MaterialExtruded ETFE, Extruded XL-ETFE (Single Jacket)
Max. Temp150C
Mil-SpecM27500
Starting at 1.98 per FT Lead Time: 112 days
m27500-18sb4t23
M27500-18SB4T23
ApplicationAvionics, Aerospace, Airframe, Defense, Wide Range of General Purpose Electrical Applications
AWG Size18
Cond. MaterialTinned Copper
Insul. MaterialXLETFE
Jacket ColorWhite
Jacket MaterialExtruded ETFE, Extruded XL-ETFE (Single Jacket)
Max. Temp150C
Mil-SpecM27500
Requires Quote per FT
m27500-16sb1t23

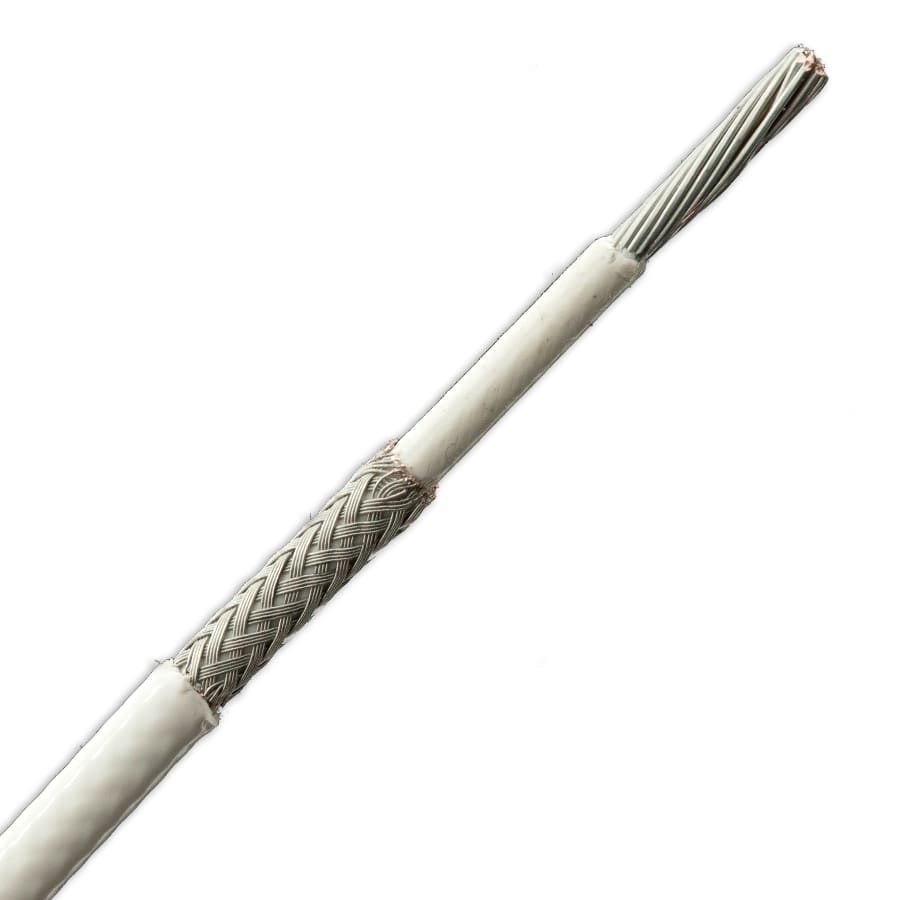

M27500-16SB1T23
ApplicationAvionics, Aerospace, Airframe, Defense, Wide Range of General Purpose Electrical Applications
AWG Size16
Cond. MaterialTinned Copper
Insul. MaterialXLETFE
Jacket ColorWhite
Jacket MaterialExtruded Irradiated ETFE, Extruded XL-ETFE (Single Jacket)
Max. Temp200C
Mil-SpecM27500
Requires Quote per FT
m27500-16sb2t23
M27500-16SB2T23
ApplicationAvionics, Aerospace, Airframe, Defense, Wide Range of General Purpose Electrical Applications
Approx LBS/MFT34.1, 34.10
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding19/29
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE), XLETFE
Jacket ColorWhite
Jacket MaterialExtruded XL-ETFE, Extruded XL-ETFE (Single Jacket)
Starting at 1.25 per FT In Stock
m27500-16sb3u23
M27500-16SB3U23
ApplicationAvionics, Aerospace, Airframe, Defense, Wide Range of General Purpose Electrical Applications
AWG Size16
Cond. MaterialTinned Copper
Insul. MaterialXLETFE
Jacket ColorWhite
Jacket MaterialExtruded Irradiated ETFE, Extruded XL-ETFE (Single Jacket)
Max. Temp200C
Mil-SpecM27500
Requires Quote per FT
m27500-16sb4t23
M27500-16SB4T23
ApplicationAvionics, Aerospace, Airframe, Defense, Wide Range of General Purpose Electrical Applications
AWG Size16
Cond. MaterialTinned Copper
Insul. MaterialXLETFE
Jacket ColorWhite
Jacket MaterialExtruded Irradiated ETFE, Extruded XL-ETFE (Single Jacket)
Max. Temp200C
Mil-SpecM27500
Requires Quote per FT
m27500-14sb1t23
M27500-14SB1T23
ApplicationAvionics, Aerospace, Airframe, Defense, Wide Range of General Purpose Electrical Applications
AWG Size14
Cond. MaterialTinned Copper
Insul. MaterialXLETFE
Jacket ColorWhite
Jacket MaterialExtruded Irradiated ETFE, Extruded XL-ETFE (Single Jacket)
Max. Temp150C
Mil-SpecM27500
Requires Quote per FT
m27500-14sb3t23
M27500-14SB3T23
ApplicationAvionics, Aerospace, Airframe, Defense, Wide Range of General Purpose Electrical Applications
AWG Size14
Cond. MaterialTinned Copper
Insul. MaterialXLETFE
Jacket ColorWhite
Jacket MaterialExtruded Irradiated ETFE, Extruded XL-ETFE (Single Jacket)
Max. Temp150C
Mil-SpecM27500
Requires Quote per FT

M27500 SB-23 Mil-Spec Cable Specifications

M27500 SB-23 Construction:

  • Conductor: Tinned Copper
  • Insulation: Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
  • Shield: No Shield
  • Jacket: White Extruded XL-ETFE, Single Jacket

M27500 SB-23 Ratings:

  • Temperature: 150°C
  • Voltage: 600 Volts
  • NEMA WC 27500 Type SB-23
  • Components: SAE-AS22759/32
