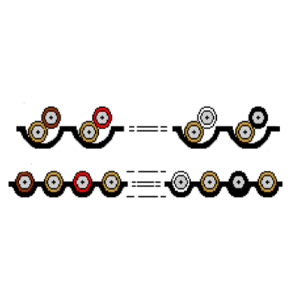

8V28040 - Instrumentation Cable (28 AWG)
Belden 8V28040 is a instrumentation cable designed for industrial instrumentation and control applications.
This cable features 20 conductors of 28 AWG, 7-strand silver-plated copper conductors. The cable operates from -70C to 150C.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 8V28040?
Belden 8V28040 features 28 AWG conductors.
What is the temperature rating for Belden 8V28040?
Belden 8V28040 is rated for operation up to 150C.
8V28040
Part Number
8V28040
Attributes
No. of Cond.
20
AWG Size
28
Cond. Material
Silver-Plated Copper
Conductor Stranding
7/36
Impedance (C-SC)
145
Insul. Material
Fluorinated Ethylene Propylene (FEP)
Max. Resistance @ 20C OHMS/MFT
68.2O/1000 ft.
Max. Temp
150C
Min. Temp
-70C
No. of Strands
7
Nom. Cap. (pF/ft)
10.6
Nom. Insul. Thick. (in)
.010?
Pitch
.050? ± .005?
Prop. Delay (ns/ft)
1.32
Span
1.95 ±.017
Strand Size
36
UL Style
20468
Width (in)
2
