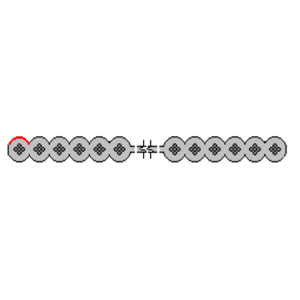

9L30026 - Instrumentation Cable (30 AWG, 150V)
Belden 9L30026 is a instrumentation cable designed for industrial instrumentation and control applications.
This cable features 26 conductors of 30 AWG, 7-strand tinned copper conductors. Rated for 150V. The cable operates up to 105C and is approved to CSA Type AWM I A standards.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 9L30026?
Belden 9L30026 features 30 AWG conductors.
What is the voltage rating of Belden 9L30026?
This cable is rated for 150 volts.
What is the temperature rating for Belden 9L30026?
Belden 9L30026 is rated for operation up to 105C.
9L30026
Part Number
9L30026
Attributes
No. of Cond.
26
AWG Size
30
Cond. Material
Tinned Copper
Conductor Stranding
7/38
CSA Type
AWM I A
Impedance (C-SC)
70
Insul. Material
Polyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT
108O/1000 ft.
Max. Temp
105C
No. of Strands
7
Nom. Cap. (pF/ft)
24
Nom. Insul. Thick. (in)
.0075?
Pitch
.025? ± .002?
Prop. Delay (ns/ft)
1.52
Span
.625 ±.007
Strand Size
38
UL Style
2678
Voltage
150
Width (in)
.650 ±.010
