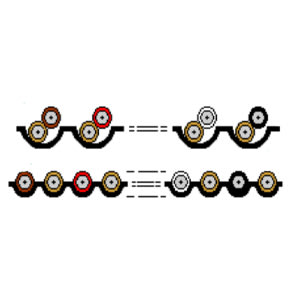

9V28060 - Instrumentation Cable (28 AWG)
Belden 9V28060 is a instrumentation cable designed for industrial instrumentation and control applications.
This cable features 30 conductors of 28 AWG, 7-strand tinned copper conductors. The cable operates from -20C to 150C.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 9V28060?
Belden 9V28060 features 28 AWG conductors.
What is the temperature rating for Belden 9V28060?
Belden 9V28060 is rated for operation up to 150C.
9V28060
Part Number
9V28060
Attributes
No. of Cond.
30
AWG Size
28
Cond. Material
Tinned Copper
Conductor Stranding
7/36
Impedance (C-SC)
115
Insul. Material
Polyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT
68.2O/1000 ft.
Max. Temp
150C
Min. Temp
-20, -20C
No. of Strands
7
Nom. Cap. (pF/ft)
16
Nom. Insul. Thick. (in)
.010?
Pitch
.050? ± .005?
Prop. Delay (ns/ft)
1.6
Span
2.95 ±.020
Strand Size
36
UL Style
2697
Width (in)
3
