DLO-6

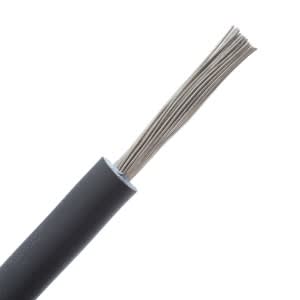

DLO-6 - 6 Gauge Diesel Locomotive Cable

Discover the DLO-6 6 AWG cable, a reliable choice in our Power Cable and Portable Cord line. This cable features 61-stranded tinned copper conductors, EPR insulation, and a black CPE jacket, with a maximum temperature of 90C and a 2000V rating. Its jacket resists oils, acids, alkalies, heat, flame, and continuous wet/dry exposure. Approved for diesel-electric locomotives, oil and gas drilling rigs, and more, its also RoHS compliant. Order this durable DLO cable from Allied Wire & Cable for your industrial applications!

DLO-6

Part Number

DLO-6

Attributes

Abrasion Resistance

Yes

Ampacity (30C)

105

Approx LBS/MFT

134

AWG Size

6

Cond. Material

Tinned Copper

Conductor Stranding

61/24

CSA Type

CSA C22.2 No. 38, CSA C22.2 No. 230

Diameter (in)

0.207

Insul. Material

Ethylene Propylene Rubber (EPR)

Jacket Color

Black

Jacket Material

Chlorinated Polyethylene (CPE)

Jacket Thickness

0.030

Max. Temp

90C

Min. Bend Radius

For Fixed: Minimum 4 x Diameter, For Flexible: Minimum 6 x Diameter

NEMA Type

NEMA WC70

No. of Strands

61

Nom. Insul. Thick. (in)

0.060

Nom. O.D. (in)

0.362

Other Standards

RP-588, RP-586; ASTM B-8, ASTM B-33; ICEA A S-95-658; IEEE-1202; P-7268080-01-MSHA; RoHS Compliant

Strand Size

24

UL Style

UL 44, UL 1685

Voltage

2000
