$1,389.99 / 1000 FT
  • Application: Outdoor
  • Approx LBS/MFT: 34.00
  • Cond. Material: Bare Copper
  • Conductor Stranding: solid
  • Dielectric (in): 0.150
  • Dielectric Material: Foam Polyethylene (FPE)
  • Jacket Material: Polyethylene (PE)
  • Max. Temp: 85C
  • Min. Temp: -40C
  • No. of Strands: 1
  • Nom. Cap. (pF/ft): 24.2
  • Nom. Dia. of Cond.: 0.056
  • Nom. Imp.: 50
  • Nom. O.D. (in): 0.2400
  • Shield: 2 Overall Shields
  • Shield Material: Tinned Copper Braid/Aluminum Tape
  • Vel. of Prop.: 84
  • Voltage: 1500

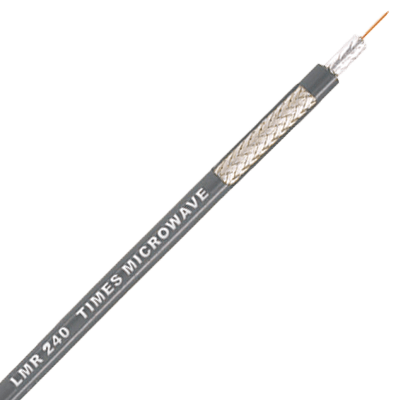

LMR-240 — LMR 240 Coax Cable

Our LMR-240 cable is a part of our extensive catalog of Coaxial Cables. This low loss coaxial cable features a solid bare copper center conductor, Foam Polyethylene (FPE) dielectric, and a Polyethylene (PE) jacket. It also has two overall shields, one a tinned copper braid shield and the other aluminum tape. This 50-ohm cable has a voltage rating of 1500V and a temperature range of -40°C to 85°C. Times Microwave designs this cable to be watertight and suitable for use in indoor-riser applications, transmission lines for antennas, jumper assemblies found in wireless communications systems, and short antenna feeder runs. It also has approval for use in mining operations per MSHA-P standards. View full product specifications in the table to the right.
