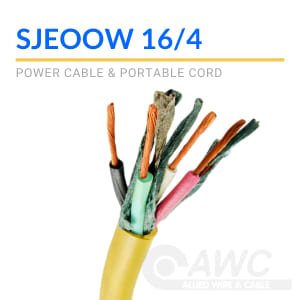

SJEOOW 16/4 Cord
Our SJEOOW 16/4 Service Cord is part of our Power Cable & Portable Cord catalog. This 16 AWG cord features four stranded bare copper conductors, TPE insulation, and a TPE jacket. SJEOOW portable power cable is suitable for use in industrial machinery, compressors, heavy duty motors, industrial control systems, and indoor/outdoor portable power. It has a voltage rating of 300V and a temperature range of -50°C to +165°C. This 16-gauge portable service cord is RoHS compliant, CSA approved and MSHA approved for mining applications.
SJEOOW 16/4
Part Number
SJEOOW 16/4
Attributes
No. of Cond.
4
Amps
10
Approx LBS/MFT
73
AWG Size
16
Cond. Material
Bare Copper
Conductor Stranding
26/30
CSA Type
SJEOOW
Insul. Material
Thermoplastic Elastomer (TPE)
Jacket Material
Thermoplastic Elastomer (TPE)
Max. Temp
105C
Min. Temp
-50C
No. of Strands
26
Nom. Insul. Thick. (in)
0.030
Nom. O.D. of Cable (in)
0.355
Strand Size
30
UL Style
SJEOOW
Voltage
300
