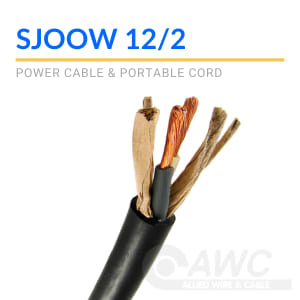

SJOOW 12/2 Cord
Our SJOOW 12/2 Service Cord is part of our Power Cable & Portable Cord catalog. This 12 AWG cord features two stranded bare copper conductors, EPDM insulation, and a neoprene jacket. SJOOW portable power cable is suitable for use in applications that require flexibility and durability including compact appliances and small-scale motors. It has a voltage rating of 300V and a temperature range of -40°C to +90°C. This 12-gauge portable service cord is oil, water, and weather-resistant. SJOOW is RoHS compliant and MSHA approved. This cord is part of our Infinitiflex line.
SJOOW 12/2
Part Number
SJOOW 12/2
Attributes
No. of Cond.
2
Amps
25
Approx LBS/MFT
130.00
AWG Size
12
Cond. Material
Bare Copper
Conductor Stranding
65/30
CSA Type
Approved
Insul. Material
Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket Material
Neoprene
Max. Temp
90C
Min. Temp
-40C
No. of Strands
65
Nom. Insul. Thick. (in)
0.030
Nom. O.D. of Cable (in)
0.410
Strand Size
30
UL Style
SJOOW
