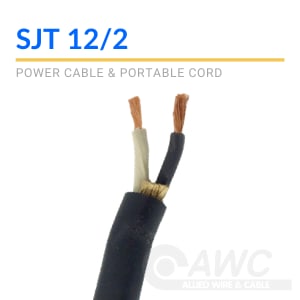

SJT 12/2 — Power Cable & Portable Cord
Our SJT 12/2 wire is part of our line of power cable and portable service cords. This 12 AWG, 25 AMPS, multi-conductor cable features 65/30 strands, polyvinyl chloride insulation, a PVC jacket, and an overall bare copper conductor material. It also has a temperature range of -34°C to 105°C, a voltage rating of 300V, 0.045 nominal insulation thickness, nominal outer diameter of 0.420 inches and weighs approximately 100 lbs. This cable meets UL-style SJTOOW standards. View full product specifications and approvals in the table to the right.
SJT 12/2
Part Number
SJT 12/2
Attributes
No. of Cond.
2
Amps
25
Approx LBS/MFT
100.00
AWG Size
12
Color Code Chart
12
Cond. Material
Bare Copper
Conductor Stranding
65/30
CSA Type
Approved
Insul. Material
Polyvinylchloride (PVC)
Jacket Material
Polyvinylchloride (PVC)
Max. Temp
105C
Min. Temp
-34C
No. of Strands
65
Nom. Insul. Thick. (in)
0.045
Nom. O.D. of Cable (in)
0.420
Strand Size
30
UL Style
SJTOOW
