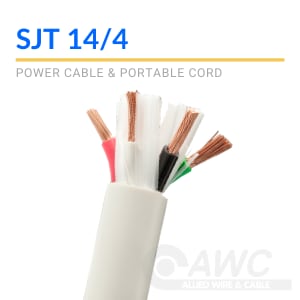

SJT 14/4 — Power Cable & Portable Cord
Our SJT 14/4 wire is part of our line of power cable and portable service cords. This 14 AWG, 15 AMPS, multi-conductor cable features 41/30 strands, polyvinyl chloride insulation, a PVC jacket, and an overall bare copper conductor material. It also has a temperature range of -34°C to 105°C, 0.045 nominal insulation thickness, nominal outer diameter of 0.405 inches and weighs approximately 115 lbs. This cable meets UL-style SJTOOW standards. View full product specifications and approvals in the table to the right.
SJT 14/4
Part Number
SJT 14/4
Attributes
No. of Cond.
4
Amps
15
Approx LBS/MFT
115.00
AWG Size
14
Color Code Chart
12
Cond. Material
Bare Copper
Conductor Stranding
41/30
CSA Type
Approved
Insul. Material
Polyvinylchloride (PVC)
Jacket Material
Polyvinylchloride (PVC)
Max. Temp
105C
Min. Temp
-34C
No. of Strands
41
Nom. Insul. Thick. (in)
0.045
Nom. O.D. of Cable (in)
0.405
Strand Size
30
UL Style
SJTOOW
