SO 10/3

SO 10/3
$0.00 / 1000 FT
  • Amps: 30
  • Approx LBS/MFT: 288, 288.00, 290.00
  • AWG Size: 10
  • Cond. Material: Bare Copper
  • Conductor Stranding: 104/30
  • CSA Type: Approved, TEW
  • Insul. Material: Ethylene Propylene Diene Monomer Rubber (EPDM)
  • Jacket Color: Black
  • Jacket Material: Polyvinylchloride (PVC), Thermoplastic Elastomer (TPE)
  • Jacket Thickness: 0.090, 0.095
  • Max. Temp: 90C
  • Min. Temp: -40C
  • No. of Cond.: 3
  • No. of Strands: 104
  • Nom. Insul. Thick. (in): 0.045
  • Nom. O.D. of Cable (in): 0.65, 0.660
  • Strand Size: 0.0147, 30
  • UL Style: 1015, SOOW
  • Voltage: 150, 600

Please note that SO has been superseded by SOOW. SOOW has both an oil resistant insulation and oil resistant outer jacket while SO only has an oil resistant outer jacket. Any SO parts entered for RFQs will be quoted as SOOW.

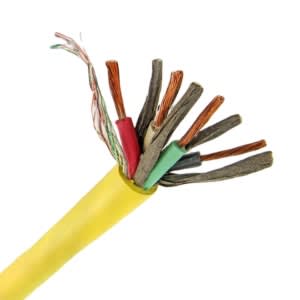

10 Gauge 3 Conductor SO Cord

Our SO 10/3 Service Cord is part of our Power Cable & Portable Cord catalog. This 10 AWG cord features three stranded bare copper conductors, EPDM insulation, and a TPE jacket. It is very flexible and adaptable. This portable power cable is ideal for wiring in appliances, tools, and temporary power or lighting. It has a voltage rating of 600V and a temperature range of -40°C to +90°C. This 10-gauge portable cord is a UL SOOW recognized cord and is CSA approved.
