SOOW 12/37

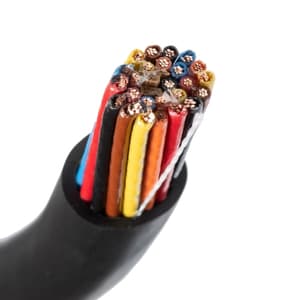

SOOW 12/37 12 Gauge Portable and Power Cable

Our SOOW 12/37 12 gauge cable is part of our Power Cables & Portable Cord line of Wire & Cable. SOOW 12/37 is composed of 37 bare copper conductors with a 65/30 stranding, an ethylene propylene diene monomer rubber (EPDM) insulation, and a chlorinated polyethylene (CPE) jacket. These cables are rated for a voltage of 600 volts, an amperage of 8 amps, have a temperature range of -40° to 90°, and weighs approximately 1749 lbs/MFT.SOOW 12/37 is resistant to water, abrasion, oils, solvents, weather, sunlight, and ozone while offering excellent flexibility and being UL listed and CSA certifies for both indoor and outdoor use. This SOOW cord is designed for hard usage with portable tools, industrial and processing equipment, construction equipment, cranes and hoists, track systems, battery chargers, portable appliances, small motors, and associated machinery, and also electrical equipment that is exposed to oils, solvents, flame, or moisture. It also features good tensile strength, elongation, and aging characteristics.

SOOW 12/37

Part Number

SOOW 12/37

Attributes

No. of Cond.

37

Amps

7, 8

Approx LBS/MFT

1588

AWG Size

12

Cond. Material

Bare Copper

Conductor Stranding

65/30

CSA Type

Standard 22.2 No. 49, TEW

Insul. Material

Ethylene Propylene Diene Monomer Rubber (EPDM)

Jacket Color

Black

Jacket Material

Chlorinated Polyethylene (CPE), Polyvinylchloride (PVC)

Jacket Thickness

0.125

Max. Temp

90C

Min. Temp

-40C

No. of Strands

65

Nom. Insul. Thick. (in)

0.045

Nom. O.D. of Cable (in)

1.53

Strand Size

0.0147, 30

UL Style

1015, UL 62

Voltage

150, 600
