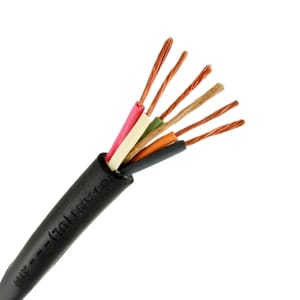

SOOW 16/6 16 Gauge Portable and Power Cable

Our SOOW 16/6 16 gauge cable is part of our Power Cables and Portable Cord line of Wire and Cable. SOOW 16/6 is composed of 6 bare copper conductors with a 26/30 stranding, an ethylene propylene diene monomer rubber (EPDM) insulation, and a chlorinated polyethylene (CPE) jacket. These cables are rated for a voltage of 600 volts, an amperage of 8 amps, have a temperature range of -40°C to 90°C, and weighs approximately 178 lbs/MFT. SOOW Cord is designed for hard usage with portable tools, industrial and processing equipment, construction equipment, cranes and hoists, track systems, battery chargers, portable appliances, small motors and associated machinery, and electrical equipment that is exposed to oils, solvents, flame, or moisture. SOOW Cable is resistant to water, abrasion, oils, solvents, weather, sunlight, and ozone. It offers excellent flexibility and is UL Listed and CSA Certified for both indoor and outdoor use and features good tensile strength, elongation, and aging characteristics. This cord is part of our Infinitiflex line.

If you want to read more about what SOOW can do, read our blog post here!

SOOW 16/6

Part Number

SOOW 16/6

Attributes

No. of Cond.

6

Amps

8, 8.0

Approx LBS/MFT

165, 178.00

AWG Size

16

Cond. Material

Bare Copper

Conductor Stranding

26/30

CSA Type

SOOW

Insul. Material

Ethylene Propylene Diene Monomer Rubber (EPDM)

Jacket Color

Black

Jacket Material

Chlorinated Polyethylene (CPE)

Jacket Thickness

0.08, 0.080

Max. Temp

90C

Min. Temp

-40C

No. of Strands

26

Nom. Insul. Thick. (in)

0.03, 0.030

Nom. O.D. of Cable (in)

0.53, 0.530

Strand Size

30

UL Style

SOOW, UL 62

Voltage

600
