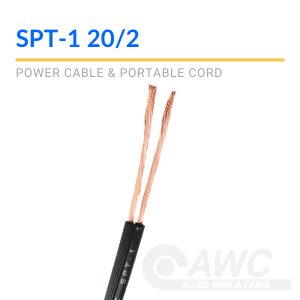

SPT-1 20/2 - 20 Gauge SPT Lamp Cord
Our SPT-1 20/2 29 AWG cord is part of our Power Cable and Portable Cord line. The SPT-1 20/2 cord is constructed of stranded bare copper conductors and PVC insulation. This cord has a maximum temperature of +105°C and is rated at 300V. This cord is also resistant to oils, water, acids, alkalies, and ozone.
SPT-1 20/2
Part Number
SPT-1 20/2
Attributes
No. of Cond.
2
Amps
2
Approx Dimension
0.100 x 0.190
Approx LBS/MFT
14.00
AWG Size
20
Cond. Material
Bare Copper
Conductor Stranding
26/20
CSA Type
C22.2 No. 49
Insul. Material
Polyvinylchloride (PVC)
Max. Temp
105C
No. of Strands
26
Nom. Insul. Thick. (in)
0.030
Strand Size
20
