CMR Rated, 22 AWG Twisted Pairs

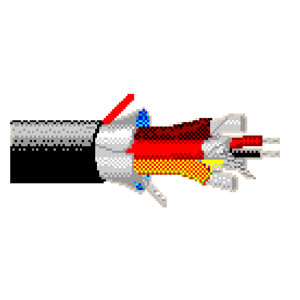

Belden Individually Shielded and Jacketed Twisted Multi-Pair Snake Cable Specifications

Multi-Pair Snake Cable Construction:

• Conductor: Stranded Tinned Copper
• Insulation: Polyolefin
• Shielding: Twisted Pairs are Individually Beldfoil Shielded, Overall Beldfoil Shield
• Jacketing: Numbered and Color-Coded PVC Inner Jackets, Overall Black PVC Jacket
• Drain Wire: 18 AWG Tinned Copper
• RipCord: Nylon
• Color Code: Red, Black
• Pair shields and jackets are bonded to allow for simultaneous stripping with automated stripping equipment
• Sizes Available: 24 AWG

Multi-Pair Snake Cable Ratings and Approvals:

• NEC: Type CMR
• CEC: Type CMG FT4
• Nominal OD Conductor: .024 inches
• Nominal OD Insulation: .040 inches
• Inner Pair Jacket OD: .111 inches
• Voltage Rating: 300V RMS
• Temperature Rating: 75°C
• Nominal Impedance: 50 ohms
• Nominal Velocity of Propagation: 66%
• Nominal Capacitance:
  • Between Conductors: 31 pF/Ft
  • Between Conductors/Shield: 58 pF/Ft
