Flexible, CM Rated, 24 AWG Twisted Pairs

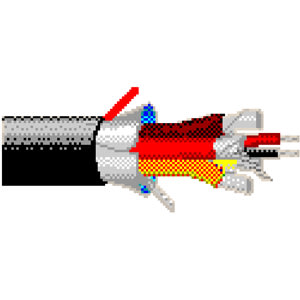

Belden Flexible CM Multi-Pair 24 AWG Snake Cable Specifications

Flexible CM Multi-Pair Snake Cable Construction:

• Conductor: Stranded Tinned Copper
• Insulation: Polyolefin
• Shielding: Twisted Pairs are Individually Beldfoil Shielded, Overall Beldfoil Shield
• Jacket: Numbered and Color-Coded Inner PVC jackets, Overall Matte Black PVC Jacket
• Drain Wire: 24 AWG Tinned Copper
• RipCord: Nylon
• Inner shields and jackets are bonded for simultaneous stripping
• Color Code: Red, Black
• Sizes Available: 24 AWG

Flexible CM Multi-Pair Snake Cable Ratings and Approvals:

• NEC: CM
• CEC: CM
• Nominal OD Conductor: .024 inches
• Nominal OD Insulation: .040 inches
• Inner Pair Jacket OD: .111 inches
• Voltage Rating: 300V RMS
• Temperature Rating: 75°C
• Nominal Impedance: 50 ohms
• Nominal Velocity of Propagation: 66%
• Nominal Capacitance:
  • Between Conductors: 31 pF/Ft
  • Between Conductors/Shield: 58 pF/Ft
