Double-Pair

These dual pair line-level cables are available in a wide variety of materials and ratings. They also meet a range of industry approvals, so be sure to look at individual part information. Low-smoke zero-halogen and zip-cord constructions are available.

8 items

Belden Cable
1504A
Approx LBS/MFT64
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding19/34
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Belden Cable

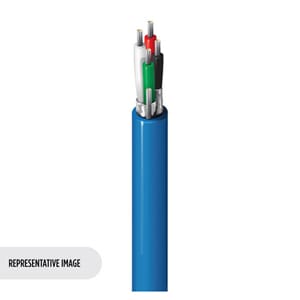

82723
Approx LBS/MFT19
AWG Size22
Color Code ChartRed & Black, Green & White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialFlamarrest
Requires Quote per FT
Belden Cable

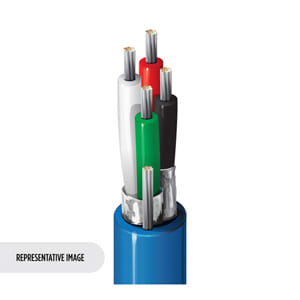

8723
Approx LBS/MFT22.00
AWG Size22
Color Code ChartRed & Black, Green & White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire24 AWG Stranded Tinned Copper
Equals2982SS
Insul. MaterialPolypropylene (PP)
Starting at 2.12
In Stock
Belden Cable

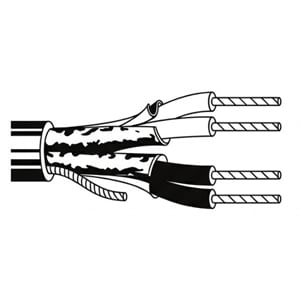

87723
Approx LBS/MFT18
AWG Size22
Color Code ChartRed & Black, Green & White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire24 AWG 7/32 Stranded Tinned Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Starting at 1.27 per FT
In Stock
Belden Cable
8777SB
Approx LBS/MFT39
AWG Size22
Color Code ChartChart 3
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialPolypropylene (PP)
Jacket MaterialLow Smoke Zero Halogen (LSZH)
Requires Quote
Belden Cable
88723
Approx LBS/MFT19
AWG Size22
Color Code ChartRed & Black, Green & White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Dielectric MaterialFluorinated Ethylene Propylene (FEP)
Drain Wire24 AWG 7/32 Stranded Tinned Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Starting at 6.25 per FT
In Stock
Belden Cable
9451D
Approx LBS/MFT29
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Belden Cable
9451DP
Approx LBS/MFT24
AWG Size22
Color Code ChartBlack/Red, Black/White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialFlamarrest
Requires Quote

Belden Double-Pair Line Level Audio Cable Specifications

Double-Pair Audio Cable Construction:

  • Conductor: Stranded Tinned Copper
  • Configuration: Two Twisted Pairs
  • Insulation: Polypropylene, FEP, PVC, Polyethylene, or Polyolefin
  • Shield: Individual Beldfoil or Overall Beldfoil
  • Drain Wire: Stranded Tinned Copper
  • Jacket: PVC, Low Smoke Zero Halogen, FEP, Fluorocopolymer, or Flamarrest
  • Color Codes: vary, see part info
  • Sizes Available: 22 AWG

Double-Pair Audio Cable Approvals and Ratings:

  • NEC Ratings: CMP, CMR, CM
  • CEC Ratings: CMP FT6, CMG FT4, CM
  • Voltage Ratings: 60°C, 75°C, 105°C, 200°C
  • Temperature Ratings: 150V, 300V
