4 Conductor Star Quad, Low Impedance

These four-conductor Star Quad Microphone Cables are suitable for use in low-impedance microphones. Belden Quad Cables feature two blue wires and two white wires with the like colors connected. They are connected by attaching the blue conductors to one pin and the white conductors to another in a XLR balance-line connector. This set-up offers maximum noise rejection.

6 items

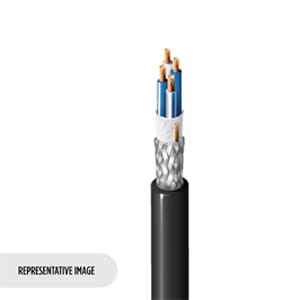

1804a
Belden Cable
1804A
Approx LBS/MFT9
AWG Size28
Color Code ChartBlue/White, White/Blue
Cond. MaterialHigh-Conductivity Silver Plated Copper Alloy, High-Conductivity Silver-Plated Copper Alloy
Conductor Stranding19/40
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.014
Requires Quote per FT

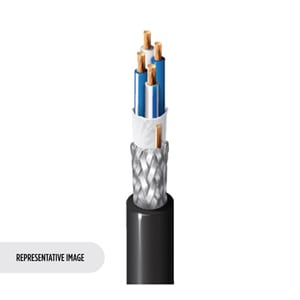

1172a
Belden Cable
1172A
Approx LBS/MFT25
AWG Size26
Color Code ChartBlue/White, White/Blue
Cond. MaterialHigh-Conductivity Bare Copper
Conductor Stranding30/40
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.03
Requires Quote per FT

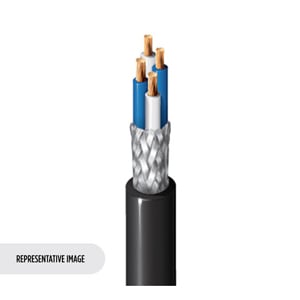

1192a
Belden Cable
1192A
Approx LBS/MFT37
AWG Size24
Color Code ChartBlue/White, White/Blue
Cond. MaterialHigh-Conductivity Bare Copper
Conductor Stranding42/40
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.045
Requires Quote per FT
8404
Belden Cable
8404
Approx LBS/MFT49
AWG Size20
Color Code ChartClear, Black, Red, Green
Cond. MaterialHigh-Conductivity Tinned Copper
Conductor Stranding19/32
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.032
Requires Quote per FT

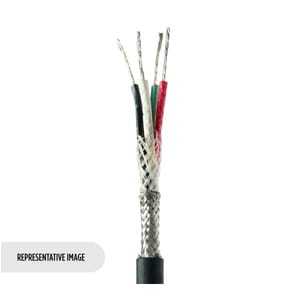

8424
Belden Cable
8424
Approx LBS/MFT64
AWG Size20
Color Code ChartBlack, White, Red, Green
Cond. MaterialHigh-Conductivity Tinned Copper
Conductor Stranding26/34
Insul. MaterialEthylene Propylene Diene Monomer Rubber (EPDM)
Jacket MaterialEthylene Propylene Diene Monomer Rubber (EPDM)
Jacket Thickness0.036
Requires Quote per FT

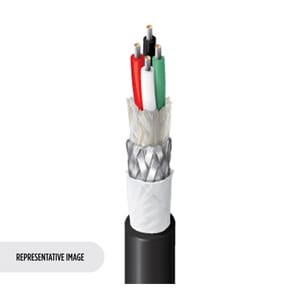

8407
Belden Cable
8407
Approx LBS/MFT113.2
AWG Size16
Color Code ChartBlack, White, Red, Green
Cond. MaterialHigh-Conductivity Tinned Copper
Conductor Stranding65/34
Insul. MaterialEthylene Propylene Diene Monomer Rubber (EPDM)
Jacket MaterialNeoprene
Jacket Thickness0.043
Requires Quote per FT

Belden UL 2094 Four Conductor Star Quad Microphone Cable

Star Quad Microphone Cable Construction:

  • Conductor: Stranded High-Conductivity Silver-Plated Copper Alloy, High-Conductivity Bare Copper, or High-Conductivity Tinned Copper
  • Insulation: Polypropylene, Polyethylene, EPDM Rubber
  • Shielding: Tinned Copper Braid, Tinned Copper Braid Shield, or Tinned Copper Braid with Rayon Braid (with or without Cotton Wrap)
  • Jacket: PVC, EPDM Rubber, or Neoprene
  • Sizes Available: 28 AWG to 16 AWG

Star Quad Microphone Cable Ratings and Approvals:

  • UL AWM Style 2094 (300V, 60°C)
  • Select parts pass VW-1 flame test
  • Voltage Rating: 100V, 300V, or 600V
  • Temperature Rating: 60°C, 75°C or 90°C
