Single-Conductor, High Impedance

5 items

Belden Cable
8410
Approx LBS/MFT37
AWG Size25
Cond. MaterialTinned Copper/Tinned Copper-Covered Silver
Conductor Stranding7/33
Insul. MaterialEthylene Propylene Diene Monomer Rubber (EPDM)
Jacket MaterialEthylene Propylene Diene Monomer Rubber (EPDM)
Jacket Thickness0.024
Max. Temp60C
Requires Quote per FT
Belden Cable
9396
Approx LBS/MFT11.2
AWG Size25
Cond. MaterialTinned Copper/Tinned Copper-Covered Silver
Conductor Stranding7/33
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Max. Temp60C
Requires Quote per FT

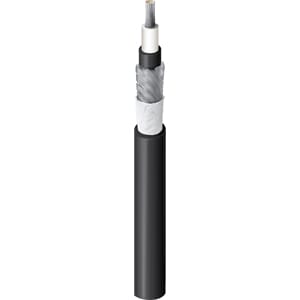

Belden Cable
9394
Approx LBS/MFT26
AWG Size20
Cond. MaterialHigh-Conductivity Tinned Copper
Conductor Stranding27/34
Insul. MaterialEthylene Propylene Diene Monomer Rubber (EPDM)
Jacket MaterialNeoprene
Jacket Thickness0.033
Max. Temp60C
Requires Quote
Belden Cable
9778
Approx LBS/MFT39
AWG Size20
Cond. MaterialHigh-Conductivity Tinned Copper
Conductor Stranding26/34
Insul. MaterialEthylene Propylene Diene Monomer Rubber (EPDM)
Jacket MaterialNeoprene
Jacket Thickness0.05
Max. Temp60C
Requires Quote per FT

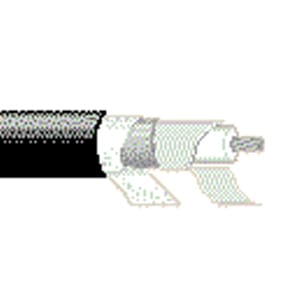

Belden Cable
9395
Approx LBS/MFT38
AWG Size18
Cond. MaterialHigh-Conductivity Tinned Copper
Conductor Stranding41/34
Insul. MaterialEthylene Propylene Diene Monomer Rubber (EPDM)
Jacket MaterialNeoprene
Jacket Thickness0.034
Max. Temp60C
Requires Quote per FT

Belden Single-Conductor High Impedance Microphone Cable Specifications

High Impedance Microphone Cable Construction:

  • Conductor: Stranded Composite Copper or Stranded High-Conductivity Tinned Copper
  • Insulation: PVC or EPDM Rubber
  • Shield: Tinned Copper Spiral Shield, Rayon Braid and Tinned Copper Braid Shield with Cotton Tape, or Conductive Textile plus Tinned Copper Spiral Shield with Paper Tape
  • Jacket: PVC, EPDM, or Neoprene
  • Sizes Available: 25 AWG to 18 AWG

High Impedance Microphone Cable Approvals and Ratings:

  • Temperature Rating: 60°C
  • Voltage Rating: 1000 VDC, 3000 VDC, or 600 V
