What Are Belden Classics?

Belden Classics are general-purpose electronic and industrial cables used for instrumentation, control, signal, audio, and related low-voltage applications. They are designed to deliver dependable performance in environments where signal integrity, shielding, and physical durability are important.

On this page, the Belden Classics category includes multiple classic Belden part numbers used across industrial and commercial systems. Rather than being tied to a single protocol like Ethernet or fiber, these cables serve as foundational building blocks inside panels, machines, process systems, audio systems, and communication equipment. Many constructions in this family use tinned copper conductors, foil shielding, drain wires, and PVC-based insulation or jacket materials to support stable performance over time.

What Are Belden Classics Used For?

Belden Classics are used where reliable low-voltage signal or control transmission is needed in noisy or demanding environments. Common uses include industrial automation, machine wiring, control panels, process control systems, instrumentation loops, audio systems, and legacy or serial data communication interfaces such as RS-232, RS-422, and RS-485.

These cables are often selected for applications that demand more than basic hookup wire. In many systems, shielding is critical to help reduce electromagnetic interference and maintain signal quality, especially around motors, drives, panels, and industrial equipment. That makes Belden Classic constructions a practical choice for factory floors, monitoring systems, detection equipment, and other installations where uptime and clean signal transfer matter.

Types of Belden Classics on This Page

The Belden Classics category can include instrumentation cable, multi-conductor cable, and multi-pair cable constructions. Based on the product examples provided, this page includes classic Belden part numbers used for control, communication, and instrumentation-related applications.

Instrumentation and Paired Cable Constructions

Part numbers like 9502 use 24 AWG tinned copper conductors, 2 pairs, an overall Beldfoil shield, PVC insulation, and a PVC jacket, with a 300V rating and approvals such as NEC Type CMG and CSA Type AWM I A. This kind of construction is well suited for instrumentation and signal applications where shielding and stable electrical performance are important.

Multi-Conductor Control Cable Constructions

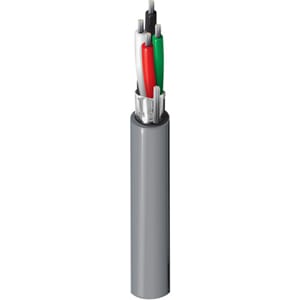

Parts like 9533, 9534, and 9535 use 24 AWG stranded tinned copper conductors with overall Beldfoil shielding, SR-PVC insulation, and PVC jackets. These constructions support general-purpose control and signal wiring where compact size, flexibility, and noise protection are needed.

Heavier Classic Electronic Cable Constructions

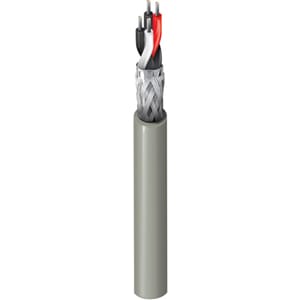

Parts such as 8302 use 22 AWG tinned copper conductors, SR-PVC insulation, and a PVC jacket, with operating temperatures up to 80C. Products like 8442, 8443, and 8444 also show classic Belden multi-conductor constructions with 22 AWG tinned copper conductors, PVC insulation, and approvals such as CSA FT4. These are typical of legacy Belden electronic cable families used in control, communication, and system wiring.

Key Features of Belden Classics

Belden Classics are built around shielding, conductor quality, and rugged materials that support long-term signal reliability. Depending on the construction, these cables may include stranded tinned copper conductors, drain wires, foil shields, and PVC-based insulation systems designed for stable performance in industrial and commercial environments.

• Shielding for noise control: Many Belden Classic constructions use Beldfoil shielding to help protect signals in electrically noisy environments.
• Tinned copper conductors: Several products on this page use stranded tinned copper conductors, which support flexibility and reliable conductivity.
• PVC and SR-PVC insulation systems: The product examples include PVC and semi-rigid PVC (SR-PVC) insulation and PVC jackets, common in classic electronic cable constructions.
• Multiple configurations: The family spans different AWG sizes, conductor counts, and pair counts, allowing engineers and buyers to match the cable to the application.
• Industrial suitability: These cables are built for use in environments where vibration, interference, and long service life are important considerations.

How to Choose the Right Belden Classic Cable

The best Belden Classic cable depends on the signal type, required shielding, conductor count, voltage rating, and installation environment. Before selecting a part number, it is important to review the application requirements, electrical characteristics, and any needed agency approvals.

1. Application Type

Determine whether the cable is being used for instrumentation, control, communication, audio, or general electronic wiring. A multi-pair cable for instrumentation has different requirements than a simple multi-conductor control cable.

2. Shielding Requirements

If the cable will run near motors, panels, variable frequency drives, or other sources of interference, shielding becomes more important. Beldfoil-shielded constructions can help maintain signal integrity in these environments.

3. Conductor and Pair Count

Match the cable construction to the number of signals or circuits being carried. Examples on this page range from multi-conductor designs to paired constructions.

4. Voltage and Temperature Rating

For example, Belden 9502 is rated 300V and operates up to 80C, so the selected cable should always match the system’s actual electrical and environmental demands.

5. Approval Requirements

If the installation requires NEC, CSA, or other agency recognition, confirm the exact part number meets those requirements. The examples provided include approvals such as CMG, AWM I A, and FT4, but requirements vary by product.

Frequently Asked Questions About Belden Classics

What are Belden Classics?

Belden Classics are versatile electronic and industrial cables used for signal, control, instrumentation, audio, and related low-voltage applications. They are known for durable constructions, shielding options, and long-term reliability in demanding environments.

Are Belden Classics shielded?

Many Belden Classic cables are available with foil shielding, including Belden’s Beldfoil designs. Shielded constructions are commonly used to reduce electrical noise and protect signal performance.

What industries use Belden Classic cables?

Belden Classics are commonly used in industrial automation, process control, machine wiring, audio systems, and communication-related applications. They are well suited for installations that need dependable low-voltage cable performance in real-world operating environments.

What makes Belden Classics different from protocol-specific cable?

Belden Classics are general-purpose cable constructions rather than cables built around one network standard or protocol. That makes them useful inside panels, machines, and equipment where dependable signal or power transmission is needed without a protocol-specific design.

How do I choose the right Belden Classic part number?

Start with the application, conductor count, shielding requirements, voltage rating, and approval needs. Then match those requirements to the correct Belden part number and construction.
