734D Series, Non-Plenum

6 items

734d1
Belden Cable
734D1
Approx LBS/MFT36
AWG Size20
Cond. MaterialSilver Plated Copper, Silver-Plated Copper
Conductor Strandingsolid
Dielectric (in)0.148
Dielectric MaterialGas-Injected Foam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
NEC TypeCMR
Requires Quote
734d12
Belden Cable
734D12
Approx LBS/MFT555
AWG Size20
Cond. MaterialSilver Plated Copper, Silver-Plated Copper
Conductor Strandingsolid
Dielectric (in)0.148
Dielectric MaterialGas-Injected Foam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
NEC TypeCMR
Requires Quote

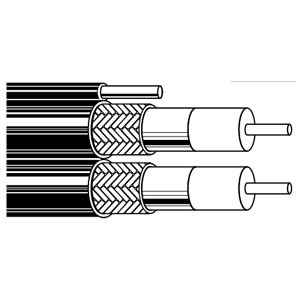

734d1t
Belden Cable
734D1T
Approx LBS/MFT39
AWG Size20
Cond. MaterialSilver Plated Copper, Silver-Plated Copper
Conductor Strandingsolid
Dielectric (in)0.148
Dielectric MaterialGas-Injected Foam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
NEC TypeCMR
Requires Quote
734d2
Belden Cable
734D2
Approx LBS/MFT66
AWG Size20
Cond. MaterialSilver Plated Copper, Silver-Plated Copper
Conductor Strandingsolid
Dielectric (in)0.148
Dielectric MaterialGas-Injected Foam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
NEC TypeCMR
Requires Quote per FT
734d2t
Belden Cable
734D2T
Approx LBS/MFT73
AWG Size20
Cond. MaterialSilver Plated Copper, Silver-Plated Copper
Conductor Strandingsolid
Dielectric (in)0.148
Dielectric MaterialGas-Injected Foam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
NEC TypeCMR
Requires Quote
734d6
Belden Cable
734D6
Approx LBS/MFT290
AWG Size20
Cond. MaterialSilver Plated Copper, Silver-Plated Copper
Conductor Strandingsolid
Dielectric (in)0.148
Dielectric MaterialGas-Injected Foam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
NEC TypeCMR
Requires Quote

Belden 734D Series Non-Plenum DS3/DS4 Cable Specifications

734D Series Non-Plenum Cable Ratings and Approvals:

  • NEC Type CMR
  • CEC Type CMG FT4

734D Series Non-Plenum Cable Construction:

  • Conductor(s): 20 AWG Solid Silver-Plated Copper
  • Insulation: Gas-Injected Foam High-Density Polyethylene (HDPE)
  • Jacket: Overall Grey PVC (multiple coaxes have inner grey PVC jackets with printed numbers for circuit identification)
  • Shield: Beldfoil (100% Coverage) and Tinned Copper Braid Shield (85% Coverage)
