Belden RG174

1 item

Belden Cable

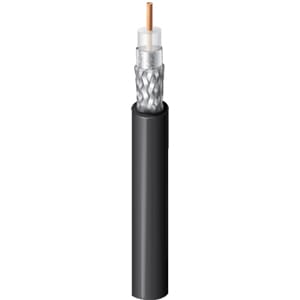

7805
Approx LBS/MFT10
AWG Size25
Cond. MaterialBare Copper
Conductor Strandingsolid
Dielectric (in)0.061
Dielectric MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp80C
Requires Quote per FT

Belden RG174 Low Loss RF Cable Specifications

RG 174 Cable Ratings and Approvals:

  • Temperature Rating: 80°C
  • RF100A or RF100LL
  • Foam HDPE Insulated Cable meets NEC Type CMR and CEC Type CMG FT4
  • 50 Ohm Cable

RG 174 Cable Construction:

  • Conductor: Solid Bare Copper
  • Insulation: Solid Polyethylene or Foam High-Density Polyethylene (HDPE)
  • Jacket: PVC
  • Shielding: Beldfoil (100% Coverage) and Tinned Copper Braid Shield (90-93% Coverage)

RG 174 Cable Applications:

  • Cable with solid polyethylene insulation is suitable for aerial applications when supported by a messenger wire.
  • RG174 Cable also can be used in commercial applications
