124 Ohm

2 items

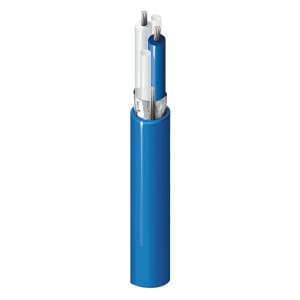

Belden Cable
9271
Approx LBS/MFT28
AWG Size25
Color Code ChartClear, Blue
Cond. MaterialTinned Copper
Conductor Stranding7/33
Dielectric (in)0.170
Dielectric MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT

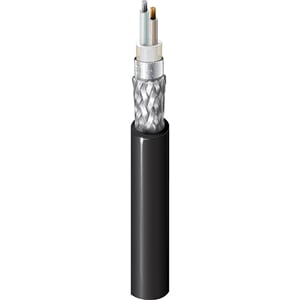

Belden Cable
9860
Approx LBS/MFT103
AWG Size16
Color Code ChartClear, Blue
Cond. MaterialBare Copper
Conductor Strandingsolid
Dielectric (in)0.322
Dielectric MaterialFoam Polyethylene (FPE)
Insul. MaterialFoam Polyethylene (FPE)
Requires Quote per FT

Belden 124 Ohm Twinax Cable Specifications

Twinaxial Cable Ratings and Approvals:

  • UL AWM Style 2092: 300V, 60°C
  • UL AWM Style 2448: 30V, 60°C
  • NEC and CEC Ratings:
    • Style 2092: NEC Type CM; CEC Type CM
    • Style 2448: NEC Type CMX; CEC Type CMX
  • Passes VW-1 Flame Test (Style 2448 Only)
  • 124 Ohm Cable

Twinaxial Cable Construction:

  • Conductor: Tinned or Bare Copper
  • Insulation: Polyethylene or Foam Polyethylene
  • Jacket: PVC
  • Color Code: Clear, Blue
  • Shield: Beldfoil Shield (100% Coverage) or Duofoil (100% Coverage) with Tinned Copper Braid Shield (90% Coverage)
  • Drain Wire: Stranded Tinned Copper (Style 2092 Only)
