Approx LBS/MFT7
AWG Size22
Cond. MaterialTinned Copper
Conductor Stranding7/30
CSA TypeCL1052
Insul. MaterialHypalon Chlorosulfonated Polyethylene (CSPE)
Max. Temp105C
No. of Strands7
600V, 105°C

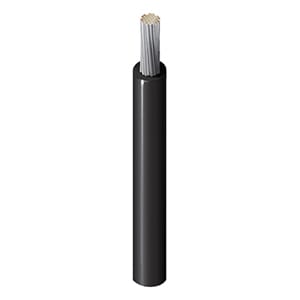

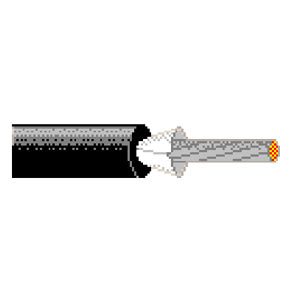

This hook-up wire is suitable for use as internal wiring for electrical and electronic equipment, panels, and meters and for point-to-point wiring.
19 items
Approx LBS/MFT10.00
AWG Size20
Cond. MaterialTinned Copper
Conductor Stranding10/30
CSA TypeCL1052
Insul. MaterialHypalon Chlorosulfonated Polyethylene (CSPE)
Max. Temp105C
No. of Strands10
Approx LBS/MFT16.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding16/30
CSA TypeCL1053
Insul. MaterialHypalon Chlorosulfonated Polyethylene (CSPE)
Max. Temp105C
No. of Strands16
Approx LBS/MFT13.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding16/30
CSA TypeCL1052
Insul. MaterialHypalon Chlorosulfonated Polyethylene (CSPE)
Max. Temp105C
No. of Strands16
Approx LBS/MFT21
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding26/30
CSA TypeCL1053
Insul. MaterialHypalon Chlorosulfonated Polyethylene (CSPE)
Max. Temp105C
No. of Strands26
Approx LBS/MFT16.00
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding26/30
CSA TypeCL1052
Insul. MaterialHypalon Chlorosulfonated Polyethylene (CSPE)
Max. Temp105C
No. of Strands26
Approx LBS/MFT27.00
AWG Size14
Cond. MaterialTinned Copper
Conductor Stranding41/30
CSA TypeCL1053
Insul. MaterialHypalon Chlorosulfonated Polyethylene (CSPE)
Max. Temp105C
No. of Strands41
AWG Size14
Cond. MaterialTinned Copper
Conductor Stranding41/30
CSA TypeCL1052
Insul. MaterialHypalon Chlorosulfonated Polyethylene (CSPE)
Max. Temp105C
No. of Strands41
Nom. Insul. Thick. (in)0.03
Carol Brand 600V PVC Hook-Up Wire Specifications
Carol Brand PVC Hook-Up Wire Construction:
- Conductor: 24 through 10 AWG fully annealed Tinned Copper per ASTM B-33, solid or stranded
- Insulation: Premium-grade, color-coded Polyvinylchloride (PVC)
- Colors Available: Black, White, Red, Orange, Yellow, Green, Blue, Brown, Grey, Violet
Carol Brand PVC Hook-Up Wire Ratings and Approvals:
- Temperature Range: -20°C to +105°C
- Voltage Rating: 600 volts
- CSA Type TEW
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL VW-1 Vertical Wire Flame Test
