MIL-W-76C Type MW 1000V, 80°C



10 items

Belden Cable
8525
Approx LBS/MFT4
AWG Size24
Cond. MaterialTinned Copper
Conductor Stranding7/32
Insul. MaterialPolyvinylchloride (PVC)
Max. Temp80C
Mil-SpecMIL-W-76C
No. of Strands7
Requires Quote per FT
Belden Cable
8538
Approx LBS/MFT4
AWG Size24
Cond. MaterialTinned Copper
Conductor Strandingsolid
Insul. MaterialPolyvinylchloride (PVC)
Max. Temp80C
Mil-SpecMIL-W-76C
No. of Strands1
Requires Quote per FT
Belden Cable
8524
Approx LBS/MFT5
AWG Size22
Cond. MaterialTinned Copper
Conductor Stranding7/30
Insul. MaterialPolyvinylchloride (PVC)
Max. Temp80C
Mil-SpecMIL-W-76C
No. of Strands7
Requires Quote per FT
Belden Cable
8530
Approx LBS/MFT4
AWG Size22
Cond. MaterialTinned Copper
Conductor Strandingsolid
Insul. MaterialPolyvinylchloride (PVC)
Max. Temp80C
Mil-SpecMIL-W-76C
No. of Strands1
Requires Quote
Belden Cable
8523
Approx LBS/MFT6.00
AWG Size20
Cond. MaterialTinned Copper
Conductor Stranding10/30
Insul. MaterialPolyvinylchloride (PVC)
Max. Temp80C
Mil-SpecMIL-W-76C
No. of Strands10
Requires Quote per FT
Belden Cable
8529
Approx LBS/MFT6
AWG Size20
Cond. MaterialTinned Copper
Conductor Strandingsolid
Insul. MaterialPolyvinylchloride (PVC)
Max. Temp80C
Mil-SpecMIL-W-76C
No. of Strands1
Requires Quote per FT
Belden Cable
8522
Approx LBS/MFT8
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding16/30
Insul. MaterialPolyvinylchloride (PVC)
Max. Temp80C
Mil-SpecMIL-W-76C
No. of Strands16
Requires Quote per FT

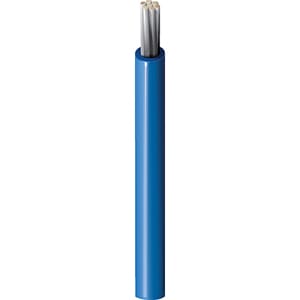

Belden Cable
8521
Approx LBS/MFT12
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding26/30
Insul. MaterialPolyvinylchloride (PVC)
Max. Temp80C
Mil-SpecMIL-W-76C
No. of Strands26
Requires Quote per FT
In Stock

Belden Mil-W-76C (Type MW) PVC Hook-Up Wire Specifications

Belden Mil-W-76C Hook-Up Wire Ratings and Approvals:

  • Mil-Spec:Mil-W-76C (Type MW)
  • Voltage Rating: 1000V
  • Temperature Rating: 80°C
  • Flame and ozone resistant
  • Will not react to most chemicals, oils, and solvents

Belden Mil-W-76C Hook-Up Wire Construction:

  • Conductor: Tinned copper
  • Conductor Configuration: Stranded or Solid
  • Insulation: Extruded Polyvinylchloride (PVC)

Belden Mil-W-76C Hook-Up Wire Applications:

Belden's Mil-W-76C (Type MW) hook-up wire can be used as internal wiring for electrical and electronic equipment. See specific part pages for full spec information and approvals.
