Approx LBS/MFT41.00
AWG Size18
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.180
Dielectric MaterialGas-Injected Foam Polyethylene (FPE)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp75C
ControlBus Quad Shielded
4 items
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.17
Dielectric MaterialFoam Fluorinated Ethylene Propylene (FFEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Max. Temp150C
Approx LBS/MFT0.00
AWG Size14
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.280
Dielectric MaterialGas-Injected Foam Polyethylene (FPE)
Jacket MaterialPolyvinylchloride (PVC)
NEC TypeCL2R/CMR
Approx LBS/MFT0.00
AWG Size14
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.280
Dielectric MaterialFoam Fluorinated Ethylene Propylene (FFEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Max. Temp150C

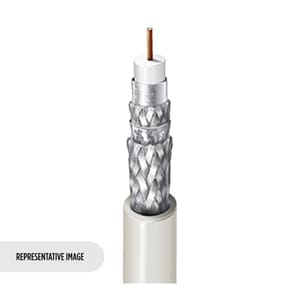

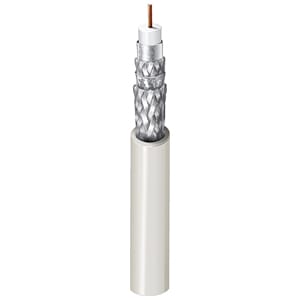

Belden ControlBus Coax Cable with Quad Shield Specifications
ControlBus Cable Ratings and Approvals:
- RG6U Cable
- RG11U Cable
- NEC and CEC Ratings:
- Non-Plenum: NEC Type CL2R CMR, CEC Type CMG FT4 or CMR FT4
- Plenum: NEC Type CMP, CEC Type CMP FT6
- Temperature Rating: Plenum Parts rated to 150°C
ControlBus Cable Construction:
- Conductor: Stranded Bare Copper or Solid Bare Copper-Covered Steel
- Insulation: Foam Polyethylene (non-plenum) or Foam FEP (plenum)
- Jacket: PVC (non-plenum) or Fluorocopolymer (plenum)
- Shielding: Duobond IV Quad Shield (100% Coverage)
