Flex Data Cable, 300V Twisted Pairs

Belden flex data cables are suitable for use in high-flexing industrial applications where accurate data transmission is necessary. They offer a long flex life of up to 1 million flex cycles. These cables are ideal for computer-controlled equipment and automated production processes. Because Belden Infinity data cables are oil-resistant, they are also suitable for use in harsh environments.

6 items

Belden Cable

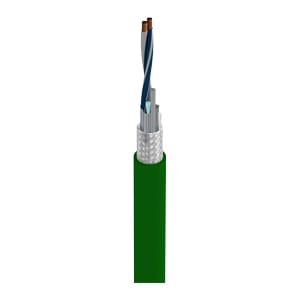

7200A
Approx LBS/MFT38
AWG Size24
Color Code ChartWhite, Blue
Cond. MaterialBare Copper
Conductor Stranding41/40
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialOil-Resistant Polyvinylchloride (PVC)
Max. Temp60C
Requires Quote per FT
Belden Cable

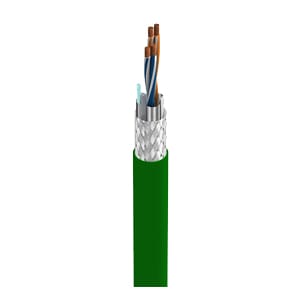

7201A
Approx LBS/MFT60
AWG Size24
Color Code ChartWhite/Blue & Blue, White/Orange & Orange
Cond. MaterialBare Copper
Conductor Stranding41/40
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialOil-Resistant Polyvinylchloride (PVC)
Max. Temp60C
Requires Quote per FT
Belden Cable

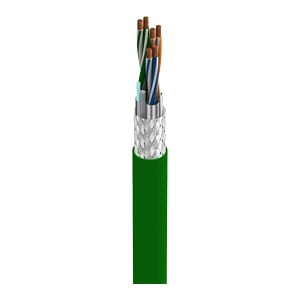

7202A
Approx LBS/MFT68
AWG Size24
Color Code ChartWhite/Blue & Blue, White/Orange & Orange, White/Green & Green
Cond. MaterialBare Copper
Conductor Stranding41/40
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialOil-Resistant Polyvinylchloride (PVC)
Max. Temp60C
Requires Quote
7203A
Approx LBS/MFT79
AWG Size24
Color Code ChartWhite/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
Cond. MaterialBare Copper
Conductor Stranding41/40
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialOil-Resistant Polyvinylchloride (PVC)
Max. Temp60C
Requires Quote per FT
Belden Cable
7205A
Approx LBS/MFT38
AWG Size24
Color Code ChartWhite, Blue
Cond. MaterialBare Copper
Conductor Stranding41/40
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialOil-Resistant Polyvinylchloride (PVC)
Max. Temp60C
Requires Quote
Belden Cable
7206A
Approx LBS/MFT59
AWG Size24
Color Code ChartWhite, Blue
Cond. MaterialBare Copper
Conductor Stranding41/40
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialOil-Resistant Polyvinylchloride (PVC)
Max. Temp60C
Requires Quote

Belden Twisted Pair Flex Data Cable Specifications

Flex Data Cable Approvals and Ratings:

  • Voltage Rating: 300V
  • Temperature Rating: -20°C to 60°C (-5°C to 60°C Flexing)
  • NEC Type CM
  • CEC Type CM
  • RS Type 232/485 or RS Type 232/422 (Belden 7205A only)

Flex Data Cable Construction:

  • Conductor: 24 AWG Stranded Bare Copper, Twisted Pairs
  • Insulation: Foam Polyethylene (FPE) with Skin
  • Shield: Overall Beldfoil (100% Coverage) and Tinned Copper Braid (85% Coverage)
  • Jacket: Green Oil-Resistant Polyvinylchloride (PVC)
