600V Type TC Cable Multi-Conductor

Belden Type TC cables are suitable for applications requiring sunlight, moisture, and vapor resistance. They have approval for use in wet and dry locations. These tray cables are also suitable for use in outdoor and direct burial applications and raceways when supported by a messenger wire. Unshielded Belden Type TC cables are applicable in control applications installed in metallic conduit. Overall shielded cables are suited to control applications with signal transmissions over 100 millivolts, but not in applications with excessive crosstalk.

146 items

Belden Cable
27325A
Approx LBS/MFT34.00
AWG Size18
Color Code ChartE2
Cond. MaterialBare Copper
Conductor Stranding7/26
CSA TypeFT4
Dielectric MaterialPolyvinylchloride (PVC)/Nylon
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Belden Cable
27325AS
Approx LBS/MFT34.00
AWG Size18
Color Code ChartE2
Cond. MaterialBare Copper
Conductor Stranding7/26
CSA TypeFT4
Dielectric MaterialPolyvinylchloride (PVC)/Nylon
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Belden Cable
27326A
Approx LBS/MFT52.00
AWG Size18
Color Code ChartE2
Cond. MaterialBare Copper
Conductor Stranding7/26
CSA TypeFT4
Dielectric MaterialPolyvinylchloride (PVC)/Nylon
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
27326AS
Approx LBS/MFT60.00
AWG Size18
Color Code ChartE2
Cond. MaterialBare Copper
Conductor Stranding7/26
CSA TypeFT4
Dielectric MaterialPolyvinylchloride (PVC)/Nylon
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Belden Cable
27327A
Approx LBS/MFT79
AWG Size18
Color Code ChartE2
Cond. MaterialBare Copper
Conductor Stranding7/26
CSA TypeFT4
Dielectric MaterialPolyvinylchloride (PVC)/Nylon
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Belden Cable

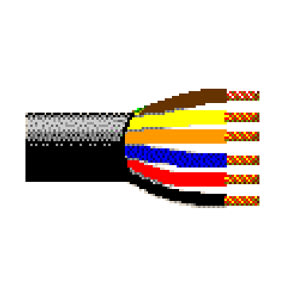

27328A
Approx LBS/MFT111
AWG Size18
Color Code ChartE2
Cond. MaterialBare Copper
Conductor Stranding7/26
CSA TypeFT4
Dielectric MaterialPolyvinylchloride (PVC)/Nylon
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Belden Cable
27329A
Approx LBS/MFT127.00
AWG Size18
Color Code ChartE2
Cond. MaterialBare Copper
Conductor Stranding7/26
CSA TypeFT4
Dielectric MaterialPolyvinylchloride (PVC)/Nylon
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Belden Cable
27334A
Approx LBS/MFT45.00
AWG Size18
Color Code ChartE2
Cond. MaterialBare Copper
Conductor Stranding7/26
CSA TypeFT4
Dielectric MaterialPolyvinylchloride (PVC)/Nylon
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT

Belden 600V Type TC Cable Specifications

Belden Type TC Cable Ratings and Approvals:

  • UL Subject 1277 Type TC
  • XLPE/Haloarrest Parts: UL 1277 TC-LS
  • UL Subject 1424
  • UL 1685 (UL 1581) Vertical Flame Test (Comparable to IEEE 383-1974 70,000BTU/hr Flame Test)
  • Approved for Cable Tray Use in Class 1, Div 2 areas per NEC Articles 340, 318, and 501
  • Approved for Class 1 Circuits per NEC Article 725
  • PVC/Nylon/PVC, XLPE/PVC, and XLPE/CPE Parts: Pass IEEE 1202/IEE 383-2003/FT4 (70,000 BTU/hr) Flame Test

Belden Type TC Cable Construction:

  • Conductor: Soft Annealed Bare or Tinned Copper
  • Insulation: PVC/Nylon (other material options available)
  • Jacket: PVC (other material options available)
  • Shielding: varies, see part info
