Audio, Control and Instrumentation Cable

23 items

9993
Belden Cable
9993
Approx LBS/MFT98
AWG Size24
Color Code ChartChart 3
Cond. MaterialTinned Copper
Conductor Stranding7/32
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Quote Only

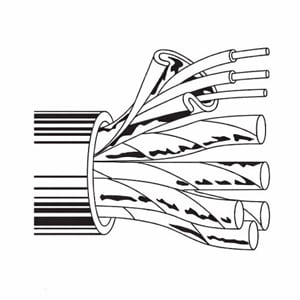

9995
Belden Cable
9995
Approx LBS/MFT212
AWG Size24
Color Code ChartChart 3
Cond. MaterialTinned Copper
Conductor Stranding7/32
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Quote Only
8723
Belden Cable
8723
MFG #8723 06010000
Approx LBS/MFT22.00
AWG Size22
Color Code ChartRed & Black, Green & White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire24 AWG Stranded Tinned Copper
Equals2982SS
Insul. MaterialPolypropylene (PP)
Starting at $1.65 per FT Available Quantity: 60,595 FT
8723sb
Belden Cable
8723SB
Approx LBS/MFT24
AWG Size22
Color Code ChartRed & Black, Green & White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialPolypropylene (PP)
Jacket MaterialLow Smoke Zero Halogen (LSZH)
Requires Quote per FT
Quote Only
8764
Belden Cable
8764
Approx LBS/MFT112
AWG Size22
Color Code ChartChart 3
Cond. MaterialTinned Copper
Conductor Strandingsolid
Drain Wire22 AWG Solid Tinned Copper
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Quote Only

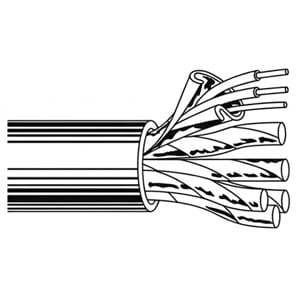

8765
Belden Cable
8765
Approx LBS/MFT129
AWG Size22
Color Code ChartChart 3
Cond. MaterialTinned Copper
Conductor Strandingsolid
Drain Wire22 AWG Solid Tinned Copper
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Quote Only
8769
Belden Cable
8769
Approx LBS/MFT244
AWG Size22
Color Code ChartChart 3
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
Quote Only
8777
Belden Cable
8777
MFG #8777 0601000
Approx LBS/MFT39
AWG Size22
Color Code ChartRed & Black, White & Black, Green & Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Dielectric MaterialPolypropylene (PP)
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialPolypropylene (PP)
Starting at $3.97 per FT Available Quantity: 35,025 FT

Belden Control, and Instrumentation Cable with Individually Shielded Pairs (UL 2919, UL 2464) Specifications

Belden Audio, Control, and Instrumentation Cable Ratings and Approvals:

  • UL AWM Style 2919: 30V, 80°C
  • UL AWM Style 2464: 300V, 80°C
  • Non-UL Listed: 300V, 60°C
  • NEC and CEC Ratings: Vary, see part info

Belden Audio Cable, Control Cable & Instrumentation Cable Construction:

  • Conductor: Stranded or Solid Tinned Copper
  • Configuration: Twisted Pairs
  • Insulation: Polyethylene (PE), Polyvinylchloride (PVC), Semi-Rigid Polyvinylchloride (S-R PVC) or Polypropylene (PP) (see part info)
  • Jacket: Polyvinylchloride (PVC), Polyvinylidene Fluoride (PVDF), High-Density Polyethylene (HDPE) or Low Smoke Zero Halogen (LSZH) (see part info)
  • Jacket Color: Chrome, Black or Beige (see part info)
  • Shield: Beldfoil or Beldfoil® (Z-Fold®) Aluminum/Polyester Foil (100% Coverage) (see part info)
  • Drain Wire: Stranded or Solid Tinned Copper
