Audio, Control, and Instrumentation Cables

37 items

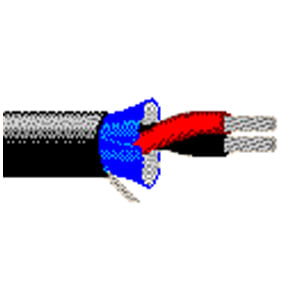

1508a
Approx LBS/MFT11
AWG Size24
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding7/32
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT

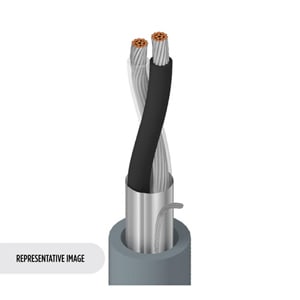

1883a
Approx LBS/MFT11
AWG Size24
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding7/32
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT

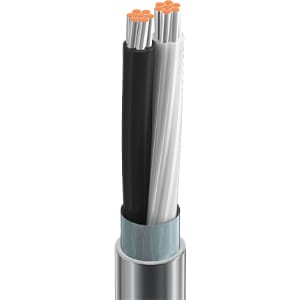

8641
Approx LBS/MFT14.00
AWG Size24
Color Code ChartBlack, Clear
Cond. MaterialTinned Copper
Conductor Stranding7/32
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT

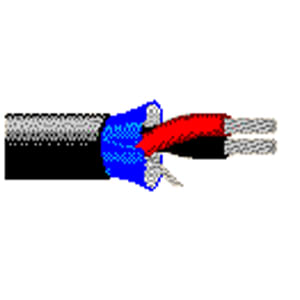

1266a
Approx LBS/MFT15
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
1503a
Approx LBS/MFT16
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Starting at 0.58 per FT In Stock

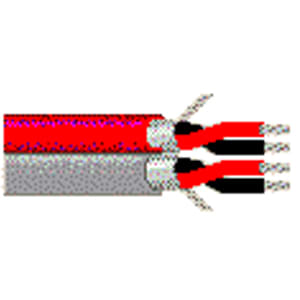

1504a
Approx LBS/MFT64
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding19/34
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
82761
Approx LBS/MFT11
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialFlamarrest
Requires Quote per FT

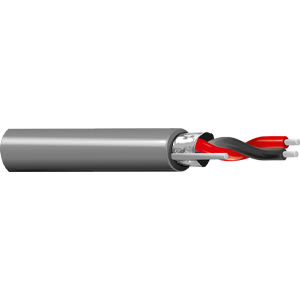

8450
Approx LBS/MFT13
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Strandingsolid
Drain Wire22 AWG Solid Tinned Copper
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
In Stock

Belden Unshielded Paired Audio, Control, and Instrumentation Cable Specifications

Unshielded Audio, Control, and Instrumentation Cable Ratings and Approvals:

  • UL AWM Styles (* not all parts are UL recognized; see part info)
    • UL AWM Style 2576: 150V, 80°C
    • UL AWM Style 2464: 300V, 80°C
    • UL AWM Style 2598: 300V, 60°C
    • UL AWM Style 2587: 600V, 90°C
  • NEC and CEC Types:
    • 24 AWG - 16 AWG: NEC Type CMG; CEC Type CMG FT4
    • 14 AWG: NEC Type CL3; CEC Type FAS 90 FT4
    • 12 AWG: NEC Type CL3R

Unshielded Audio, Control, and Instrumentation Cable Construction:

  • Conductor: Tinned Copper
  • Configuration: Twisted Pair(s)
  • Insulation: PVC
  • Jacket: Chrome PVC
