Composite Cable, Coax plus Twisted Pair: CM or CMP Rated

6 items

Belden Cable
539945
Approx LBS/MFT69.00
Color Code ChartBlack, Red
Composite Construction18 coax solid bare copper shielded, 18 pairs stranded (7/w) bare copper unshielded
Cond. MaterialBare Copper
Insul. MaterialFoam Polyolefin (FPO)/Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp75C
Min. Temp-30C
Requires Quote per FT
Belden Cable
549945
Approx LBS/MFT60
Color Code ChartBlack, Red
Composite Construction20 coax solid bare copper shielded, 18 pairs stranded (7/w) bare copper unshielded
Cond. MaterialBare Copper
Insul. MaterialFoam Polyolefin (FPO)/Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp75C
Min. Temp-30C
Requires Quote per FT
Belden Cable

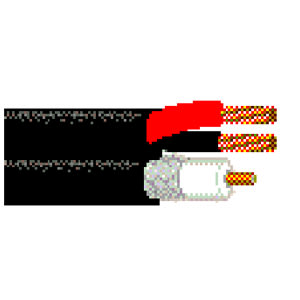

579945
Approx LBS/MFT29
Color Code ChartBlack, Red
Composite Construction25 coax solid bare copper shielded, 20 pairs stranded (7/w) bare copper unshielded
Cond. MaterialBare Copper
Insul. MaterialFoam Polyolefin (FPO)/Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp75C
NEC TypeCM
Requires Quote
Belden Cable
639948
Approx LBS/MFT60
Color Code ChartBlack, Red
Composite Construction18 coax solid bare copper shielded, 18 pairs stranded (7/w) bare copper unshielded
Cond. MaterialBare Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialFlamarrest
Max. Temp75C
NEC TypeCMP
Requires Quote
Belden Cable
649948
Approx LBS/MFT54
Color Code ChartBlack, Red
Composite Construction20 coax solid bare copper shielded, 18 pairs stranded (7/w) bare copper unshielded
Cond. MaterialBare Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialFlamarrest
Max. Temp75C
NEC TypeCMP
Requires Quote per FT
Belden Cable
679948
Approx LBS/MFT34
Color Code ChartBlack, Red
Composite Construction25 coax solid bare copper shielded, 20 pairs stranded (7/w) bare copper unshielded
Cond. MaterialBare Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialFlamarrest
Max. Temp75C
NEC TypeCMP
Requires Quote per FT

Belden CCTV Composite Cable (Coax Plus Twisted Pair) Specifications

CCTV Composite Cable Construction:

  • Conductor: Bare Copper
  • Insulation:
    • Non-Plenum:
      • Coax: Foam Polyolefin (FPO)
      • Pair: PVC
    • Plenum: FEP
  • Shield: (Coax) Bare Copper Braid
  • Jacket:
    • Non-Plenum: PVC
    • Plenum: Flamarrest

CCTV Composite Cable Ratings and Approvals:

  • NEC Ratings:
    • Non-Plenum: CM
    • Plenum: CMP
    • LSZH: CMG-LS
  • CEC Ratings:
    • Non-Plenum: CM FT1
    • Plenum: CMP FT6
    • LSZH: CMG-LS FT1 Limited Smoke
  • NEC Article: 800
  • Nominal Impedance: 75 ohms
  • Temperature Rating: 75°C

CCTV Composite Cable Applications:

  • CCTV plus Audio or Power
  • Pan, Tilt, and Zoom CCTV Control
