The LMR 1200 Cable is one of the many low-loss coaxial cables we carry at Allied Wire and Cable. This cable a bare copper tube for its inner conductor and aluminum tape for its outer conductor. The flexible outer conductor enables the tightest bend radius of any cable of similar size and performance. This cable also features a foam PE dielectric and a tinned copper braid. The LMR 1200 has the lowest loss of any flexible cable. It is designed for outdoor exposure, is UV resistant, and has a life expectancy of over 20 years.
6 items
-

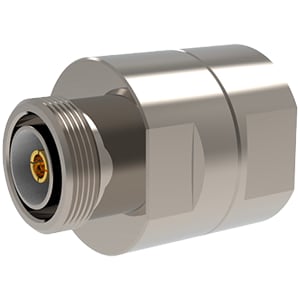

EZ-1200-716FC-2$0.00 /
- Approx LBS/MFT: 586.00
- Connector Type: Straight Jack
- Contact Attach (Inner): Spring Finger
-

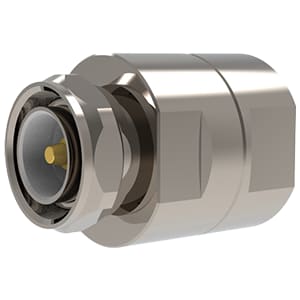

EZ-1200-716MC-2$0.00 /
- Approx LBS/MFT: 848.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Spring Finger
-

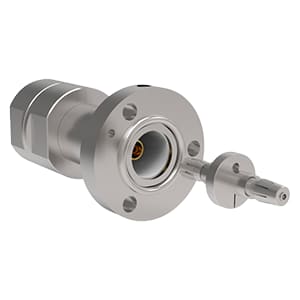

EZ-1200-78EIA-2$0.00 /
- Approx LBS/MFT: 1206.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Spring Finger
-
EZ-1200-78EIA-RA-2$0.00 /
- Approx LBS/MFT: 1800.00
- Connector Type: Right Angle
- Contact Attach (Inner): Spring Finger
-
EZ-1200-NFC-2$0.00 /
- Approx LBS/MFT: 630.00
- Connector Type: Straight Jack
- Contact Attach (Inner): Spring Finger
-
EZ-1200-NMC-2$0.00 /
- Approx LBS/MFT: 651.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Spring Finger
A wide selection of LMR 1200 connectors is offered by Times Microwave for LMR-1200 cable. LMR 1200 coax connectors can be found in Type N, 7-16 DIN and 7/8 EIA interface types. These connectors are available in straight jack, straight plug and right angle options. A short jumper cable is recommended for any transition to interfaces smaller than Type N.
LMR 1200 Coax Cable Specifications
LMR 1200 Construction:
- Inner Conductor: Bare Copper Tube (0.309" ID)
- Dielectric: Foam PE (Polyethylene)
- Outer Conductor: Aluminum Tape
- Outer Braid: Tinned Copper
- RF Shielding: 50 dB greater than typical single shielded coax (40 dB) - multi-ply bonded foil outer conductor rated conservatively at 90 dB
LMR 1200 Ratings:
- Temperature:
- Installation Temp Range: -40°C to 85°C
- Storage Temp Range: -70°C to 85°C
- Operating Temp Range: -40°C to 85°C
LMR 1200 Applications:
- Jumper assemblies for 1-5/8" & 2-1/4" feeders
- Medium antenna feeder runs
- Building-top sites
- LMR 1200 Coaxial Cable may be used in any application (ex. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring easily-routed, low-loss RF cable
LMR1200 Standard Connectors:
- EZ-1200-716-FC-2
- EZ-1200-716-MC-2
- EZ-1200-NFC-2
- EZ-1200-NMC-2
- EZ-1200-78-EIA-2
- View more LMR1200 connectors here
Construction of LMR 1200 Coax Connectors:
- Description: Straight Jack, Straight Plug or Right Angle (see part specs for full details)
- Inner Contact Attach: Spring Finger
- Outer Contact Attach: Clamp
- See chart below and individual LMR 1200 Coax Connector part specs for more info.
