SRML wire is a high-temperature wire that may be used as motor lead wire for hazardous locations. Depending on its conductor size, this wire can be rated to either 150°C or 200°C, but it has an overall voltage rating of 600V. It can also be used as a lead wire for electrical equipment in high-temperature environments. SRML wire performs well where flexibility and fire resistance are important.

21 items

  • SRML-4-300T-0
    $0.00 / 1000 FT
    • Approx LBS/MFT: 200
    • AWG Size: 4
    • Cond. Material: Tinned Copper
    Order
    Add to List

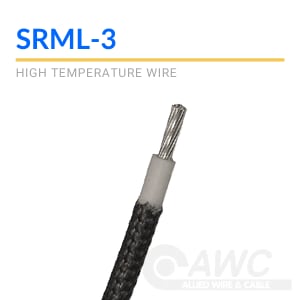

  • SRML-3
    $0.00 / 1000 FT
    • Amps: 180
    • Approx LBS/MFT: 240.00
    • AWG Size: 3
    View Details
  • SRML-2
    $0.00 / 1000 FT
    • Amps: 240
    • Approx LBS/MFT: 280.00
    • AWG Size: 2
    View Details

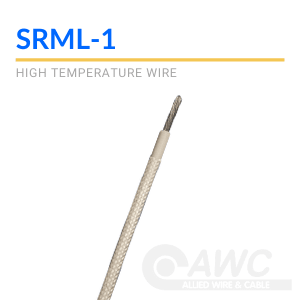

  • SRML-1
    $0.00 / 1000 FT
    • Approx LBS/MFT: 359.00
    • AWG Size: 1
    • Cond. Material: Tinned Copper
    View Details

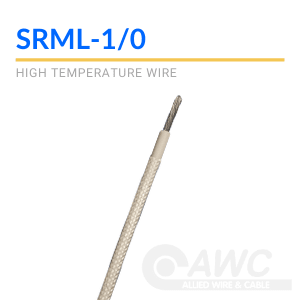

  • SRML-1/0
    $0.00 / 1000 FT
    • Amps: 325
    • Approx LBS/MFT: 440.00
    • AWG Size: 1/0
    View Details

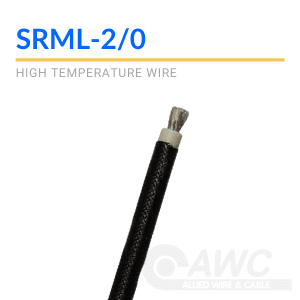

  • SRML-2/0
    $0.00 / 1000 FT
    • Amps: 370
    • Approx LBS/MFT: 659.00
    • AWG Size: 2/0
    View Details

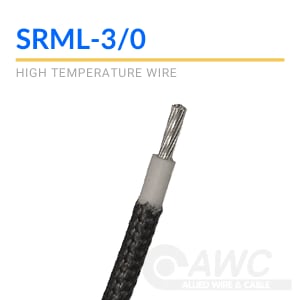

  • SRML-3/0
    $0.00 / 1000 FT
    • Amps: 430
    • Approx LBS/MFT: 659.00
    • AWG Size: 3/0
    View Details

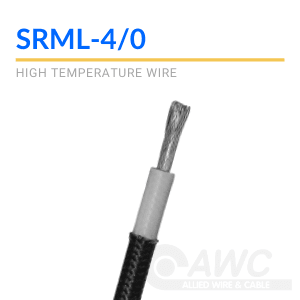

  • SRML-4/0
    $0.00 / 1000 FT
    • Amps: 510
    • Approx LBS/MFT: 812.00
    • AWG Size: 4/0
    View Details

SRML High-Temperature Motor Lead Wire Specifications

SRML Wire Construction:

  • Conductor: Stranded tin-plated annealed copper, conforming to ASTM B-33
  • Insulation: Extruded silicone rubber with overall, non-fraying, fiberglass braid with a glossy high-temperature saturant finish.

SRML Wire Ratings:

  • Conductors with 4 AWG strands or larger are rated at 200°C and those with 6 AWG strands or smaller are rated at 150°C; 6 AWG and 8 AWG rated 150°C UL/ 200°C non-UL
  • UL 3231 200°C, 600 Volts
  • UL 3070 / UL 3278 150°C, 600 Volts
