UL 5256

UL 5256

UL 5256 Wire has a voltage rating of 600 Volts and a maximum temperature of 250°C. It has a stranded nickel-coated copper conductor, a thick PTFE insulation, and a fiberglass braid jacket. This wire has many uses. It can be found in household appliances such as ovens, the internal wiring of domestic, commercial, and industrial products, and hot spot locations for industrial applications. It is ideal for high temperatures and harsh environments found in heaters, furnaces, ovens, and kilns. UL 5256 Wire meets UL 5256, CSA AWM, and A/B FT-1 standards.

10 items

Sale

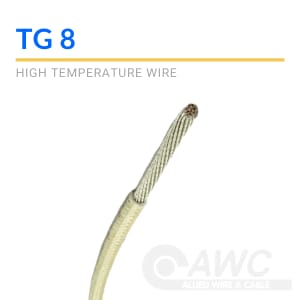

TG 8
Amps95
Approx LBS/MFT72.00
AWG Size8
Cond. MaterialNickel-Plated Copper
Conductor Stranding133/.0111
CSA TypeAWM I A/B
Fiberglass Braid Thick. (in)0.005
Insul. MaterialPTFE Tape/Fiberglass Serving/Fiberglass Braid treated with High-Temp Saturant
Starting at 3.26 per FT
In Stock

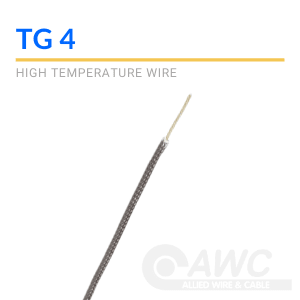

TG 4
Amps175
Approx LBS/MFT175.00
AWG Size4
Cond. MaterialNickel-Plated Copper
Conductor Stranding133/.0177
CSA TypeAWM I A/B
Fiberglass Braid Thick. (in)0.006
Insul. MaterialPTFE Tape/Fiberglass Serving/Fiberglass Braid treated with High-Temp Saturant
Requires Quote per FT

UL 5256 Wire Specifications

UL 5256 Wire Construction:

  • Conductor: Flexible, stranded nickel-coated copper conductor.
  • Insulation: PTFE tapes covered by wrapped fiberglass yarns. UL 5256 TGGT Wire has a fiberglass (hi-temp) braid jacket applied over the insulation. It is then treated with a high-temp saturant.
  • Colors: Tan (Natural) is stocked. Other colors may be available upon request.
  • Temperature and voltage: 250°C and 600 Volts

UL 5256 Wire Benefits:

  • Applied in equipment with limited space available
  • Sturdy insulation system
  • Boosts fiber bonding
  • Due to its robust construction, often used in temperatures and applications well beyond its rating
  • UL/CSA Certified wire
