UL 1423

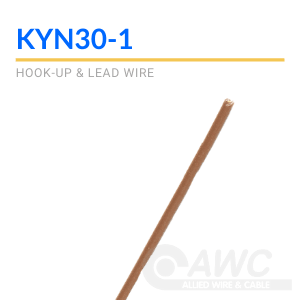

KYN30-1

Approx LBS/MFT0.47

AWG Size30

Cond. MaterialSilver-Coated Copper

Conductor Strandingsolid

Insul. MaterialPolyvinylidene Fluoride (PVDF) / Kynar

Max. Temp105C

No. of Strands1

Nom. Dia. of Cond.0.0100

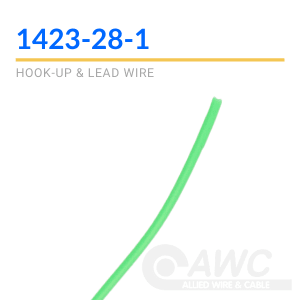

1423-28-1

Approx LBS/MFT0.71

AWG Size28

Cond. MaterialSilver-Plated Copper

Conductor Strandingsolid

Insul. MaterialPolyvinylidene Fluoride (PVDF) / Kynar

Max. Temp105C

No. of Strands1

Nom. Dia. of Cond.0.0126

1423-26-1

Approx LBS/MFT0.00

AWG Size26

Cond. MaterialSilver-Plated Copper

Conductor Strandingsolid

Insul. MaterialPolyvinylidene Fluoride (PVDF) / Kynar

Max. Temp105C

No. of Strands1

Nom. Dia. of Cond.0.0159

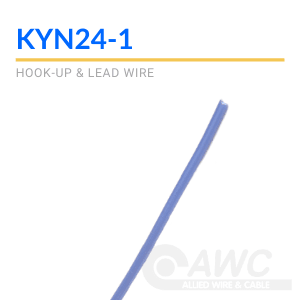

KYN24-1

Approx LBS/MFT1.52

AWG Size24

Cond. MaterialSilver-Coated Copper

Conductor Strandingsolid

Insul. MaterialPolyvinylidene Fluoride (PVDF) / Kynar

Max. Temp105C

No. of Strands1

Nom. Dia. of Cond.0.0201

1423-22-1

Approx LBS/MFT0.00

AWG Size22

Cond. MaterialSilver-Plated Copper

Conductor Strandingsolid

Insul. MaterialPolyvinylidene Fluoride (PVDF) / Kynar

Max. Temp105C

No. of Strands1

Nom. Dia. of Cond.0.0253

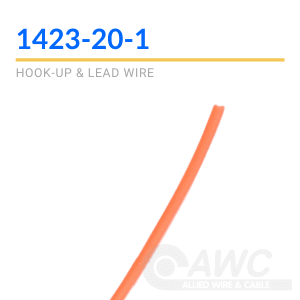

1423-20-1

Approx LBS/MFT3.49

AWG Size20

Cond. MaterialSilver-Plated Copper

Conductor Strandingsolid

Insul. MaterialPolyvinylidene Fluoride (PVDF) / Kynar

Max. Temp105C

No. of Strands1

Nom. O.D. (in)0.0410
