UL 1283 Wire

UL 1283 wire features a bare or tinned copper conductor with PVC insulation which is designed to exceed test requirements for the Underwriters Laboratories and the National Electric Code. It is recommended for use in accordance with UL and CSA for uninterruptible power supply equipment. It is also moisture-resistant and passes the VW-1 flame test. UL 1283 is suitable for use in the wiring of machine tools, appliances, control cabinets, electronic circuits and meters, transformers, and switchboards. UL 1283 is approved for both the internal and external wiring of appliances. It has a temperature rating of 105°C.

14 items

  • 1283-3-525B
    $0.00 / 1000 FT
    • Additional Ratings: BC-5W2/THHW; rated and printed SAEJ1127 Type SGT
    • AWG Size: 3
    • Cond. Material: Bare Copper
    View Details
  • 1283-2-133T-9
    $0.00 / 1000 FT
    • Approx LBS/MFT: 285
    • AWG Size: 2
    • Cond. Material: Tinned Copper
    Order
    Add to List

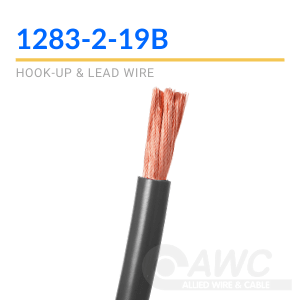

  • 1283-2-19B
    $0.00 / 1000 FT
    • Additional Ratings: BC-5W2/THHW;rated and printed SAEJ1127 Type SGT
    • AWG Size: 2
    • Cond. Material: Bare Copper
    View Details
  • 1283-2-665B
    $0.00 / 1000 FT
    • Additional Ratings: BC-5W2/THHW;rated and printed SAEJ1127 Type SGT
    • AWG Size: 2
    • Cond. Material: Bare Copper
    View Details
  • 1283-2-665B-5/4
    $0.00 / 1000 FT
    • Additional Ratings: BC-5W2/THHW;rated and printed SAEJ1127 Type SGT
    • Approx LBS/MFT: 263
    • AWG Size: 2
    Order
    Add to List

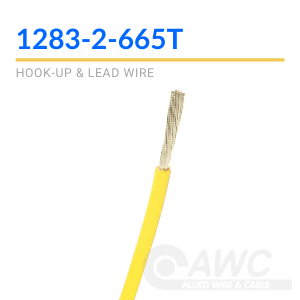

  • 1283-2-665T
    $0.00 / 1000 FT
    • Additional Ratings: BC-5W2/THHW
    • Approx LBS/MFT: 263.00
    • AWG Size: 2
    View Details

UL 1283 MTW/TEW Approvals and Ratings:

  • UL Rated MTW Wire
  • CSA Rated TEW Cable
  • 6 AWG - 500 MCM also meets BC-5W2
  • 1 AWG - 500 MCM CT Rated
  • 6 AWG - 4/0 is rated/printed SAE J1127, Type SGT
  • Flammability: Pass VW-1 Flame Test

Construction:

  • Conductor: Stranded Bare or Tinned Copper
  • Insulation: Polyvinylchloride (PVC)

Temperature Ratings:

  • MTW: 90°C
  • TEW: 105°C
  • UL & CSA: 105°C
