M16878/21 - Type E

M16878/21 — Type E

Our M16878/21 hook-up wire is a durable Mil-Spec wire. It is constructed of a stranded silver-plated copper conductor and PTFE tape insulation. This wire has a temperature range of -65°C to +200°C and a voltage rating of 600V.

14 items

Sort by

Per Page:

M16878/21BDB

Approx LBS/MFT0.00, 2

AWG Size26

Cond. MaterialSilver-Coated Copper

Conductor Stranding7/34

Insul. MaterialPolytetrafluoroethylene (PTFE)

Max O.D. (in)0.043

Max. Temp200C

Mil-SpecM16878/21, MIL-W-16878/21

M16878/21BDE

Approx LBS/MFT0.00, 2

AWG Size26

Cond. MaterialSilver-Coated Copper

Conductor Stranding19/38

Insul. MaterialPolytetrafluoroethylene (PTFE)

Max O.D. (in)0.043

Max. Temp200C

Mil-SpecM16878/21, MIL-W-16878/21

M16878/21BEB

Approx LBS/MFT0.00, 3

AWG Size24

Cond. MaterialSilver-Coated Copper

Conductor Stranding7/32

Insul. MaterialPolytetrafluoroethylene (PTFE)

Max O.D. (in)0.048

Max. Temp200C

Mil-SpecM16878/21, MIL-W-16878/21

M16878/21BEE

Approx LBS/MFT0.00, 3

AWG Size24

Cond. MaterialSilver-Coated Copper

Conductor Stranding19/36

Insul. MaterialPolytetrafluoroethylene (PTFE)

Max O.D. (in)0.048

Max. Temp200C

Mil-SpecM16878/21, MIL-W-16878/21

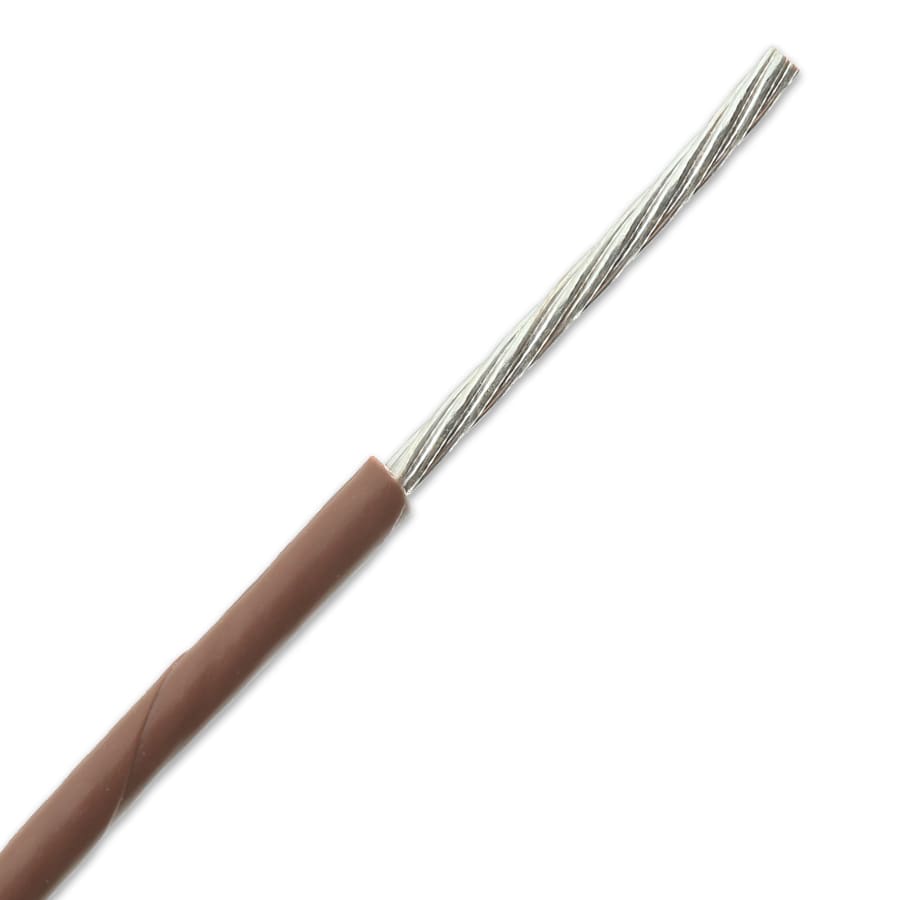

M16878/21BFB

Approx LBS/MFT0.00, 4

AWG Size22

Cond. MaterialSilver-Coated Copper

Conductor Stranding7/30

Insul. MaterialPolytetrafluoroethylene (PTFE)

Max O.D. (in)0.054

Max. Temp200C

Mil-SpecM16878/21, MIL-W-16878/21

M16878/21BFE

Approx LBS/MFT0.00, 4

AWG Size22

Cond. MaterialSilver-Coated Copper

Conductor Stranding19/34

Insul. MaterialPolytetrafluoroethylene (PTFE)

Max O.D. (in)0.054

Max. Temp200C

Mil-SpecM16878/21, MIL-W-16878/21

M16878/21BGB

Approx LBS/MFT0.00, 5

AWG Size20

Cond. MaterialSilver-Coated Copper

Conductor Stranding7/28

Insul. MaterialPolytetrafluoroethylene (PTFE)

Max O.D. (in)0.062

Max. Temp200C

Mil-SpecM16878/21, MIL-W-16878/21

M16878/21BGE

Approx LBS/MFT0.00, 6

AWG Size20

Cond. MaterialSilver-Coated Copper

Conductor Stranding19/32

Insul. MaterialPolytetrafluoroethylene (PTFE)

Max O.D. (in)0.062

Max. Temp200C

Mil-SpecM16878/21, MIL-W-16878/21

M16878/21 Mil-Spec Hook-Up Wire Specifications

M16878/21 Construction:

Conductor: Silver-Coated Copper
Insulation: Tape Wrapped PTFE, with .010" nom. thickness

M16878/21 Ratings:

Temperature Range: -65°C to 200°C
Voltage Rating: 600 Volts
