AWG Size24
Cond. MaterialSilver Coated Copper
Conductor Stranding7/32
Insul. MaterialSilicone
Max O.D. (in).058, 0.058
Max. Temp200C
Mil-SpecM16878/7, MIL-W-16878/7
Min O.D. (in).052, 0.052
M16878/7 - Type F
M16878/7 — Type F

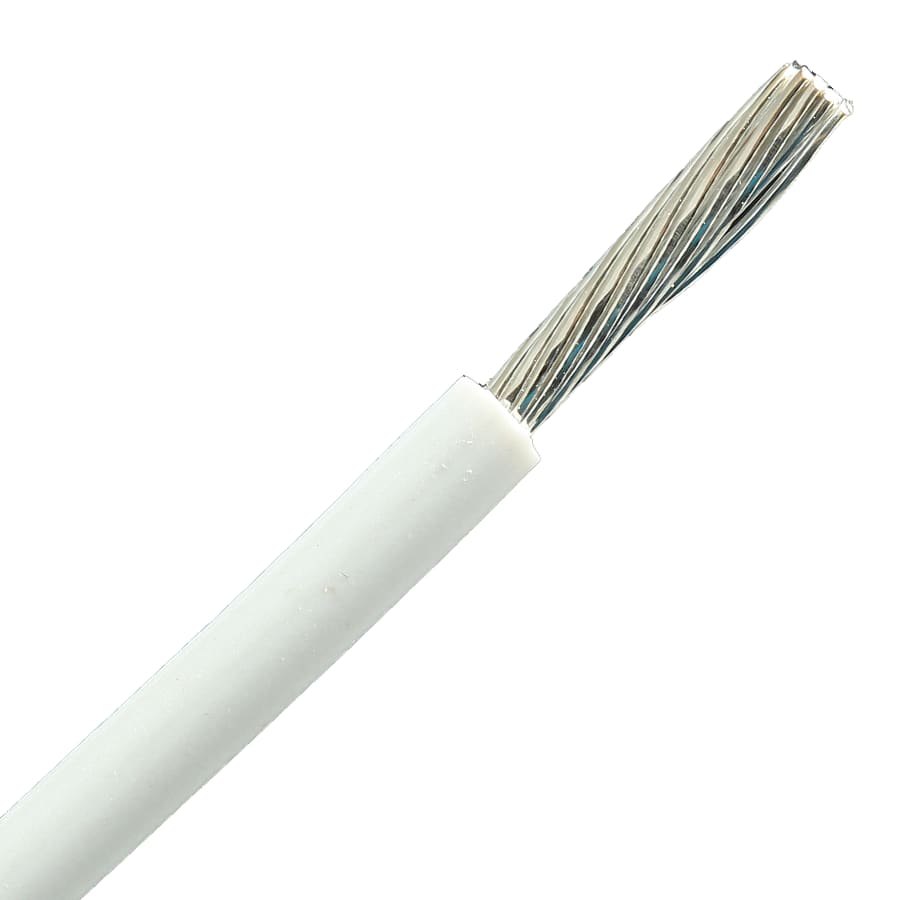

Our M16878/7 hook-up wire is designed to be flame-retardant and meets Navy smoke, toxicity, and acid gas regulations. This wire is constructed of a stranded silver-plated copper conductor and extruded silicone insulation. It has a maximum temperature of 150°C and is rated at 600V. The M16878/7 wire is designed for use in applications requiring high flexibility, durability, and high-temperature resistance.
13 items
Approx LBS/MFT3.7
AWG Size22
Cond. MaterialSilver Coated Copper
Conductor Stranding7/30
Insul. MaterialSilicone
Max O.D. (in).064, 0.064
Max. Temp200C
Mil-SpecM16878/7, MIL-W-16878/7
Approx LBS/MFT5
AWG Size20
Cond. MaterialSilver Coated Copper
Conductor Stranding7/28
Insul. MaterialSilicone
Max O.D. (in).072, 0.072
Max. Temp200C
Mil-SpecM16878/7, MIL-W-16878/7
Approx LBS/MFT4.5
AWG Size20
Cond. MaterialSilver Coated Copper
Conductor Stranding10/30
Insul. MaterialSilicone
Max O.D. (in).072, 0.072
Max. Temp200C
Mil-SpecM16878/7, MIL-W-16878/7
Approx LBS/MFT7.1
AWG Size18
Cond. MaterialSilver Coated Copper
Conductor Stranding7/26
Insul. MaterialSilicone
Max O.D. (in).082, 0.082
Max. Temp200C
Mil-SpecM16878/7, MIL-W-16878/7
Approx LBS/MFT6.5
AWG Size18
Cond. MaterialSilver Coated Copper
Conductor Stranding16/30
Insul. MaterialSilicone
Max O.D. (in).082, 0.082
Max. Temp200C
Mil-SpecM16878/7, MIL-W-16878/7
Approx LBS/MFT9.3
AWG Size16
Cond. MaterialSilver Coated Copper
Conductor Stranding19/29
Insul. MaterialSilicone
Max O.D. (in).091, 0.091
Max. Temp200C
Mil-SpecM16878/7, MIL-W-16878/7
Approx LBS/MFT9.9
AWG Size16
Cond. MaterialSilver Coated Copper
Conductor Stranding26/30
Insul. MaterialSilicone
Max O.D. (in).091, 0.091
Max. Temp200C
Mil-SpecM16878/7, MIL-W-16878/7
