M24643/35 LS3SU, LS3SA, LS3SUS

MIL-DTL-24643/35 (LS3SU, LS3SA, LS3SUS)

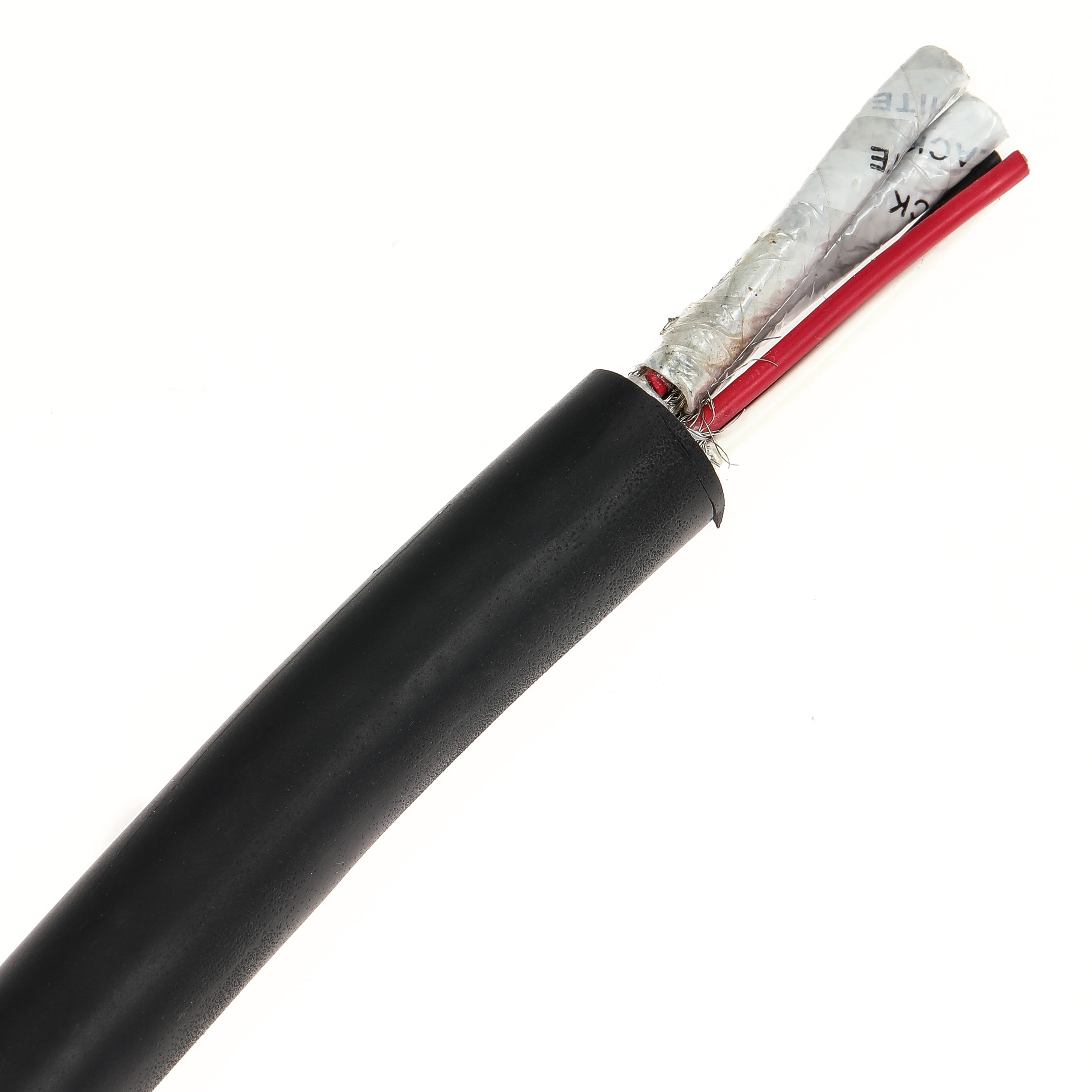

The M24643/35 cable is a low-smoke, zero-halogen shipboard cable. It is suitable for non-watertight, non-flexing service. This Mil-Spec cable features stranded bare copper conductors grouped into triads, Cross-Linked Polyethylene (XLPE) insulation, and an LSZH cross-linked Polyolefin (XLPO) jacket. This cable also has individually shielded triads. There is an armored, shielded, and double shielded variation of this cable. It is suitable for use in shipboard combat systems, interior communications, and lighting and power applications that do not exceed 600V. The Mil-DTL-24643 Mil-Spec covers cables suitable for use in shipboard, communications, instrumentation, and electronic applications.

27 items

ls3sa-7
LS3SA-7
Approx LBS/MFT0.00
Armor MaterialAluminum Braid
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.960
Requires Quote per FT
ls3su-10
LS3SU-10
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.190
Metal TubesL
Requires Quote per FT
ls3su-14
LS3SU-14
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.290
Metal TubesM
Requires Quote per FT
ls3su-19
LS3SU-19
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.430
Metal TubesN
Requires Quote per FT
ls3su-24
LS3SU-24
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.670
Metal TubesR
Requires Quote
ls3su-3
LS3SU-3
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.700
Metal TubesD
Requires Quote per FT
ls3su-30
LS3SU-30
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.770
Metal TubesS
Requires Quote
ls3su-37
LS3SU-37
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.930
Metal TubesT
Requires Quote

MIL-C-24643/35 (LS3SU, LS3SA, LS3SUS) Mil-Spec Shipboard Cable Specifications

M24643/35 Construction:

  • Conductor: Stranded Bare Copper, Class B Stranding per ASTM B8
  • Insulation: Cross-Linked Polyethylene (XLPE)
    • Color Code: One black, one white, and one red conductor
  • Jacket: Black or White Low-Smoke, Zero-Halogen (LSZH) Cross-Linked Polyolefin (XLPO) with surface markings
  • Shield: Bare Copper Braid, individually shielded triads
  • Overall Shield (LS3SUS only): Tinned Copper Braid
  • Armor (LS3SA only): Aluminum Braid

M24643/35 Ratings and Approvals:

  • Mil-Spec:
  • Navy Shipboard Spec:
    • LS3SA (armored)
    • LS3SU (unarmored)
    • LS3SUS (shielded)
  • Voltage Rating: 600V
